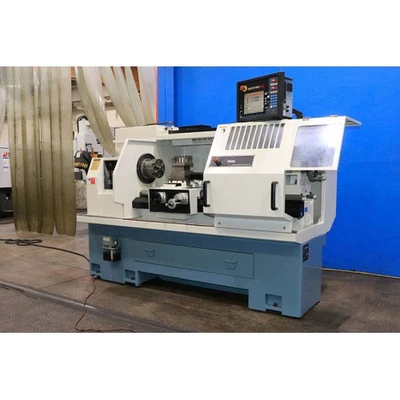

TRAK TRL1840SX CNC FLAT BED TEACH LATHE WITH 6-JAW CHUCK, FOUR STATION STAR PROGRAMMABLE TURRET, TAILSTOCK & STEADY REST, 2008
Overview
Description
AML Stock #002874
18" X 40" TRAK 2-AXIS CNC/MANUAL FLAT BED LATHE
MODEL TRL 1840SX
S/N: 081CC16297, NEW: 2008
Specifications
HEIGHT OF CENTERS .......................... 9"
SWING OVER BED ............................. 18-1/2"
SWING OVER CROSS SLIDE ..................... 9"
SWING OVER SADDLE WINGS .................... 17"
MAX DISTANCE BETWEEN CENTERS ............... 40.2"
CROSS SLIDE TRAVEL (X) ..................... 13"
LONGITUDINAL TRAVEL (Z) .................... 40"
SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6
SPINDLE SPEED RANGE (3), INF VAR ........... 50 - 2500 RPM
SPINDLE BORE ............................... 2.36"
TAPER IN HEADSTOCK SPINDLE ................. #6 MT
TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT
TAILSTOCK QUILL TRAVEL ..................... 6.3"
TAILSTOCK QUILL DIAMETER ................... 2.95"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 4,500 LBS
APPROX DIMENSIONS .......................... 94" X
53" X 70"
Equipped With
- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC
CONTROL
ADVANCED FEATURES, NETWORK,
TRAKING
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC SPINDLE DRIVE
- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS
- FOUR STATION PROGRAMMABLE STAR INDEXABLE
TOOLPOST
- HARDENED & GROUND BED WAYS
- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS
& BALLSCREWS
- COOLANT SYSTEM
- 10 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR &
ELECTRICAL CONTROLS
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
