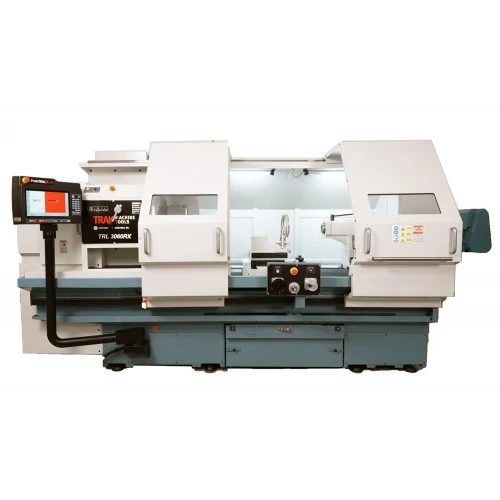

TRAK TRL 3060RX CNC TOOLROOM LATHE 30" SWING x 60"cc WITH 6.3" SPINDLE BORE
Overview
Description
TRAK TRL 3060RX CNC TOOLROOM LATHE 30" SWING x 60"cc WITH 6.3" SPINDLE BORE
TRAK TRL 3060RX
Specifications
Gap bed lathe with 43.5″ swing over 15.5″ gap
60″ between centers with 60″ maximum cutting length
Generous 6.3″ spindle through hole
30 HP continuous spindle motor
Tapered roller bearings
High and low speed range settings
Standard Features:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes
Swing
33"
Distance Between Centers
60"
Bar Capacity
6.3"
Max RPM
1,300 RPM
Power
30 hp
Tailstock
Yes
Control
CNC
