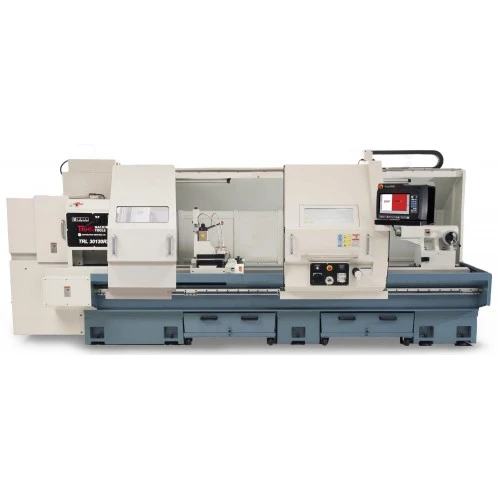

TRAK MACHINE TOOLS MODEL TRL 30120RX TOOLROOM LATHE 33" SWING 1118"cc MANUAL & CNC TOOLROOM LATHE WITH ELECTRONIC HANDWHEELS AND JOGSTICK TOUCH SCREEN 6.30" SPINDLE BORE 30 HP
TRL 30120RX Features
Gap bed lathe with 43.5″ swing over 15.5″ gap
118″ between centers with 121″ maximum cutting length
Large 6.30″ spindle through hole
20.5″ of cross slide travel
30 HP continuous spindle motor
Interface for rear chuck
High (aluminum) and low (steel) speed range settings
Tailstock - standard equipment
Coolant pump - standard equipment
3 work lights - standard equipment
Standard on RX Series Lathes
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
