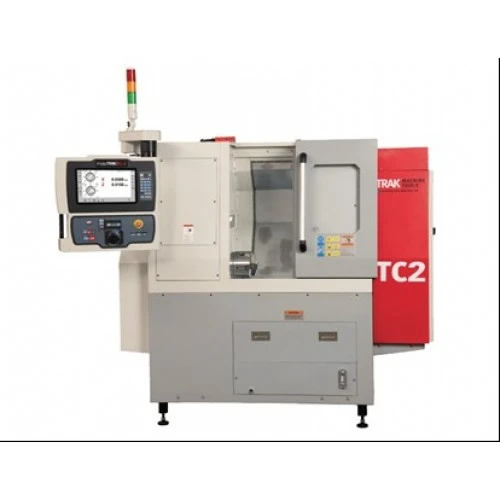

TRAK MACHINE TOOLS MODEL TC2 CNC TURNING CENTER featuring the ProtoTRAK RLX CNC Control 2-Axis CNC and DRO 15.6″ LCD screen 8-station turret
Southwestern
Industries, Inc.
TRAK
TC2
with
the ProtoTRAK RLX Control
Machine
Specifications
Overall
Machine Dimensions

Dimensions (LxWxH)


80.4 x
36.96 x 75.5”




Max. Swing
over bed


12”




Max. Turned
diameter / Length


8” / 11”




Machine
Weight


3370 lbs




Machine
Shipping Weight


3483 lbs




Electrical


208V, 3P, 60
Hz

Travel

X Axis –
direct drive with brake


7.5”




Z Axis –
direct drive


11.40”

 Spindle

Spindle nose


A2-5




Spindle
power


7.5 HP




Spindle thru
bore


2.40”




Bar capacity


2.05”


Turret

No. of tool station


8




Tool max
size


3/4 in




Tool index


Clamping
method




Servo motor


Pneumatic

 Air
Requirements

Pressure


90 psi

 Hardware
•
ProtoTRAK
RLX CNC
•
Two-axis
CNC and DRO
•
15.6”
LCD screen
•
4
USB 2.0 ports
•
Built
in LED status lights
•
Coolant
pump
•
Ethernet
port
 Hardware
•
Clear,
uncluttered interface
•
Prompted
data inputs
•
Plain
language - no codes
•
Soft
keys change with context
•
Windows® operating system
•
Inch/mm
selectable
•
G-Code
run
•
Canned
cycles
 Options
•
TC2
High Speed Spindle
•
External
Delkin USB drive
•
Tool
Tray
•
TRAKing
•
480v
Transformer
•
Hydraulic
Chuck – 6”
•
Manual
Chuck – 8”
•
Auxiliary
Output
•
MT
Connect Ready
•
Advanced
Features with Verify Part
•
Offline
Software
•
DXF
Converter
•
CAM
File Out
•
Offline
programming

·
Software
