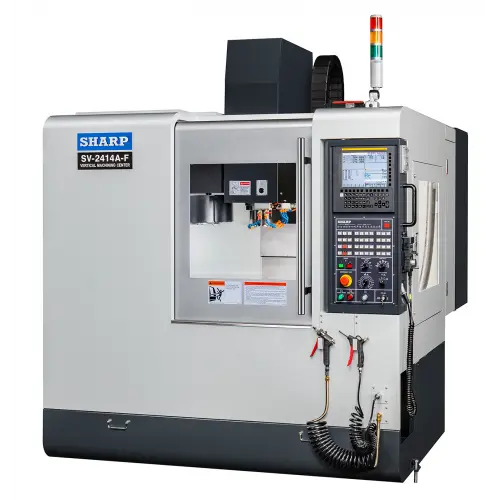

SHARP SV-2414A-F VERTICAL MACHINING CENTER MINI MILL WITH BOX WAYS FANUC Oi-MF CONTROL 4TH AXIS PREPPED

SHARP SV-2414A-F VERTICAL MACHINING CENTER MINI MILL WITH BOX WAYS FANUC CONTROL 4TH AXIS WIRED
VERTICAL MACHINING CENTER - MODEL SV-2414A-F

24” x 14” x 18” travel
Hardened and ground Box ways with TURCITE coating
8,000 rpm, CAT 40 spindle
16 tools carousel type ATC
Fanuc Oi-MF control panel with embedded Ethernet, RS232 port, USB port and Flash Drive port. (standard)
Pre-tensioned, double anchored, ball screws mounted on high precision angular contact bearings (ABEC 7), eliminate chatter and vibrations during heavy cutting.
Vertical head is equipped with 2 adjustable coolant nozzles, one adjustable air nozzle,  4 coolant openings and 4 air curtain openings under the spindle. There is also the air purge system that blows out chips at each tool change (standard)
Chip wash nozzles are installed at each side of machine base (standard)
Rigid taping, auto lube, thermal control system, coolant gun, air gun, interlock doors (standard)
Machine wt. 5,500 lbs

STANDARD ACCESSORIES

Fanuc Oi-MF control and drives with ; USB port, 512 K memory, Embedded Ethernet, RS-232C interface, 4 additional M codes, M30 Auto Power Off
Full metal enclosure with 2 large side doors
Coolant system with enlarged coolant tank
Coolant gun
Auto lubrication system
Rigid tapping
Air gun
Removable electronic hand wheel (MPG)
Door interlock
Chip pan
Air accumulator
Heat exchanger for electric cabinet
Florescent work light
4th axis software from Fanuc
4th axis kit prepped ( electrics, cables unit)
4th axis with rotary table (complete with drives, motor)
Scrapper type chip conveyor
Hinge type chip conveyor
Oil skimmer
Coolant Through Spindle (CTS) prepped (rotary joint, hoses, cylinder electrics)
CTS 20 bar/70 bar (300/1,000 psi) pump with tank
Tool Probe (Renishaw TS27R)
Tool Setter (Renishaw OMP40)
