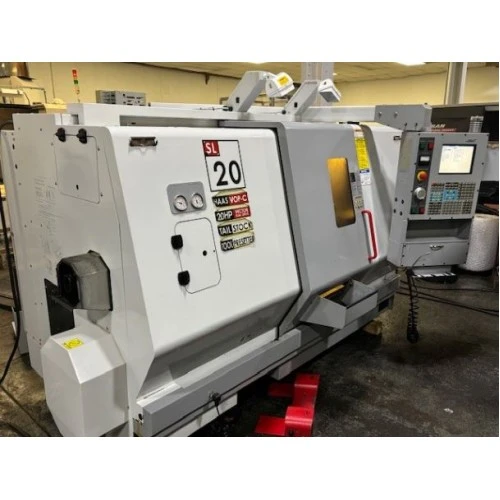

HAAS SL20T CNC TURNING CENTER 20" SWING WITH 8" 3-JAW CHUCK, COLLET CHUCK, CHIP AUGER, 2004

HAAS SL20T CNC TURNING CENTER 20" SWING WITH 10" 3-JAW CHUCK, COLLET CHUCK, CHIP AUGER, 2004
AML Stock #002965
HAAS SL-20T CNC TURNING CENTER
NEW: 2004

MAXIMUM SWING OVER FRONT APRON ....... 20"
SWING OVER CROSS SLIDE ............... 9.5"
MAXIMUM TURNING DIAMETER ............. 10"
MAXIMUM TURNING LENGTH ............... 20"
X AXIS TRAVEL ........................ 8.45"
Z AXIS TRAVEL ........................ 20"
RAPID TRAVERSE RATE X AXIS ........... 710 IPM
RAPID TRAVERSE RATE Z AXIS ........... 710 IPM
SPINDLE BORE ......................... 3.0"
MAXIMUM BAR CAPACITY ................. 2.0"
SPINDLE SPEEDS ....................... 4,000 RPM
SPINDLE MOTOR ........................ 20 HP
TURRET CAPACITY ...................... 10 STATION TURRET
TAILSTOCK BODY STROKE ................ 17.9"
TAILSTOCK QUILL STROKE ............... 4.7"
TAILSTOCK QUILL DIAMETER ............. 3.9"
TAILSTOCK QUILL TAPER ................ MT #3
APPROXIMATE DIMENSIONS ............... 124" x 70"
x 74"
MACHINE WEIGHT (APPROXIMATE) ......... 9,000 LBS

- HAAS CNC CONTROL
 - 8" 3-JAW HYD. CHUCK
 - TOOLSETTER
 - PARTS CATCHER
 - TAILSTOCK
 - BOLT-ON TURRET
 - CHIP AUGER
 - HIGH INTENSITY LIGHTING
 - BARFEED INTERFACE (FOR HAAS BRUSHLESS BARFEED)
 - ALL AVAILABLE TOOLHOLDERS
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NJ
