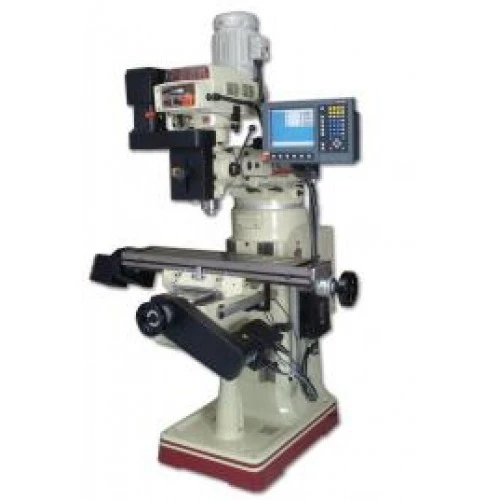

ACER 3VS-II VERTICAL MILLING MACHINE WITH 9" X 49" TABLE AND ACU-RITE MILLPWR G2 CNC CONTROL

ACER 3VS-II VERTICAL MILLING MACHINE WITH 9" X 49" TABLE AND ACU-RITE MILLPWR G2 CNC CONTROL;

Available in 2-Axis or 3-Axis Configurations; Price indicated is for 2-Axis; Please call for formal quote and available options

Other sizes available

Please call Marc @ (732) 390-0006 for formal quotations or to set up an inspection at our showroom

Features

ACU-RITE MillPWR CNC controls.

3 HP inverter motor for high torque output.

C.N.C. vector-type AC frequency drive.

Infinite 0-4500 RPM constant spindle speed, change in no time (0-4 sec).

Machine can run on single or three phase without changing the wiring.

Low maintenance and down time cost because no plastic insert, key, and moving pulley.

No R.P.M. changer break down, but accurate reading on R.P.M. to prolong tool life.

Electronic and mechanical brake for fast spindle stop.

No belt slippage for high efficient torque output.

Boring and tapping application.

Save energy costs up to 35%.

Control Software Features:

 Abs/inc







Hole Patters (bolt circle, array, frame, row)







Tool Library





Repeat, Rotate, Mirror Image, Engraving







Inch / Metric





Position / Drill







Polar / Cartesian





Lines / Diagonals / Arcs







Rectangle (pocket, frame, slot, face)





Blends (corner radius)







Circle (pocket, frame, ring)





Custom Pockets







Interactive ICON based Conversational





User Friendly: Fill in the blanks & start







12.1" Color LCD Flat Panel Display





(3) 29 in/lb. DC Brush Servo Motors







DXF Coverter for G-Code





Built-In 512 MB CF with 999 Block Capacity







Engraving: 3 Font Types





Numerous Canned Cycles in Conversational
