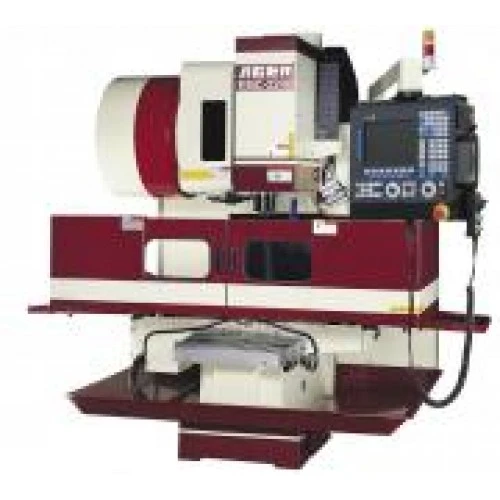

ACER EMC-2240A VERTICAL MACHINING CENTER WITH FAGOR 8055i FL 3-AXIS CNC CONTROL

ACER EMC-2240A VERTICAL MACHINING CENTER WITH FAGOR 8055i FL 3-AXIS CNC CONTROL, Travel 40" x 22" x 20", 8,000 RPM, 15 HP, Cat 40 or BT 40 Taper, 24 Tool Side Mount Automatic Tool Changer, Full Enclosure Splash Guard, Fagor 8055i FL 3-Axis CNC G-Code/Conversational Control; Call Marc @ (732) 390-0006 to schedule an inspection.

FAGOR 8055i/A-MC Control with high speed machining standard.
Tool clamp/unclamp button.
Halogen light.
Four coolant nozzles output to splash the workpiece cleanly.
Retractable Z axis roller cover to block coolant and chips entering the slideways.
Hard stop limit switch provides as the secondary traveling limit.
Telescopic steel way cover.
Y, Z axes have square ways.
Three axes hardened & ground slideway at Rockwell C 45°.
FC 30 castings weighing at an impressive 8,360 lbs.
2.5 HP German made servo motor is joined with C5 ball screw through non-slip HTD timing belt and pulley.
Table splash guard with retractable doors.
Column side guard.
Every ACER EMC spindle is loaded with five P4 precision angular contact ball bearings (NSK or FAG).
Automatic arm type tool changer - 24 tool changer standard.
10 HP spindle motor made in Germany.
ACER electric cabinet is carefully laid out and ready for more expansion.
90° swing overhead control arm.
