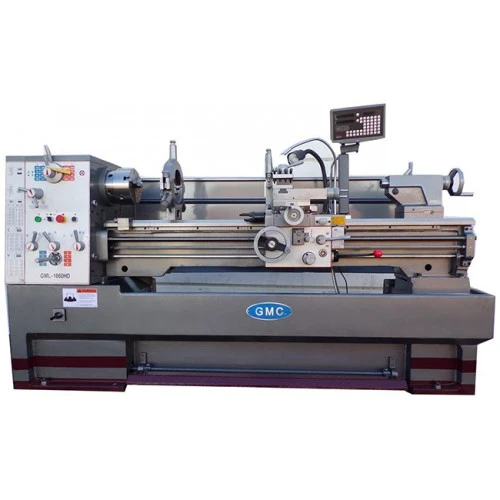

GMC 16" x 60" PRECISION ENGINE LATHE FULLY TOOLED WITH 2-AXIS DIGITAL READ OUT 2 1/16" SPINDLE BORE 6 HP MAIN MOTOR GMC MACHINE TOOLS MODEL GML-1660HD
Call Marc @ (732) 390-0006 to inquire about free shipping to your loading dock!
Free Sino Digital Read Out - Complete & Installed!
Other sizes available!
Standard Features
ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP
16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 inch threads, and 39 metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Standard Included Equipment
Free Taper turning attachment installed
8” 3-jaw chuck with one set of reversible jaws
10” 4-jaw chuck
12” Face plate
5 1/2” large steady rest with roller jaws
Oil pump on Apron for all guideways and leadscrews
2” follow rest
Removeable gap
4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
(2) dead centers and (1) reducing sleeve MT6/MT4
Thread chasing dial
Tool box and leveling pads
Max. swing over bed
16 1/16"
Max. length of workpiece
60"
Max. swing over cross slide
10 1/4"
Max. Swing in gap
23 1/4"
Width of Bed
10 1/4"
Effective length in gap to spindle
8 1/2"
Effective length in gap to chuck jaws
3 1/2"
Spindle bore
2 1/16" D1-6
Taper of spindle center
M.T. #6 (MT6/MT4 sleeve)
Spindle speeds
45-1,800 rpm / 16 steps
Longitudinal feeds
0.0018-0.07 IPR, 42 kinds
Cross feeds
0.0009-0.03 IPR, 42 kinds
Inch threads
70-2 TPI, 45 kinds
Metric threads
0.2-14 mm , 39 kinds
Diametral Pitch threads
8-40 DP , 21 kinds
Module threads
0.3-3.6 mm, 18 kinds
Max. travel of top slide
4 1/4"
Max. travel of cross slide
8 1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20 1/2"
1 1/4" x 4 TPI
Diameter of tailstock quill
2 1/16"
Max. travel of tailstock quill
5"
Taper of tailstock quill center
MT4
Main motor
6 HP, 220V, 3 Phase
Coolant pump
1/8 HP, 220V, 3 Phase
Net weight
4,850 lbs.
Overall dimensions, LxWxH
100" x 38" x 56"
