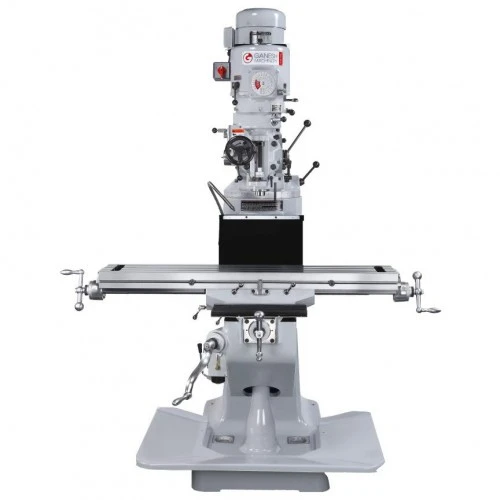

GANESH GMV-2F VERTICAL MILLING MACHINE WITH 9" x 50" TABLE 3 HP VARIABLE SPEED

GANESH GMV-2F VERTICAL MILLING MACHINE WITH 9" x 50" TABLE 3 HP VARIABLE SPEED

L3-Horsepower Variable Speed Head

LClass-7 Super Precision Spindle Bearings

LHard-Chrome Plated and Mirror Ground Quill

LHard-Chrome Plated X & Y Axis Ways

L9” x 50” Table Dimensions

LCoolant Proof Halogen Lamp Standard

Table Travel – Longitudinal – X Axis
38”

Table Travel with Power Feed
33.07”

Cross Travel – Y Axis
12”

Vertical Knee Travel – Z Axis
16”

Overarm (ram) Travel
12”

Overarm Swivel
360°


Spindle Nose-to-Table Surface
0” – 18.5”

Spindle Centerline to Column Face
6.75” – 18.75”

Leadscrews with ground pitch surface (X & Y)
0.200” per rev. (ballscrews optional)


Adjustable scale ring display resolution
0.001”

Ways – X, Y & Z Axes – Hard Chrome Plated

Hardened & Ground Dovetail Ways
