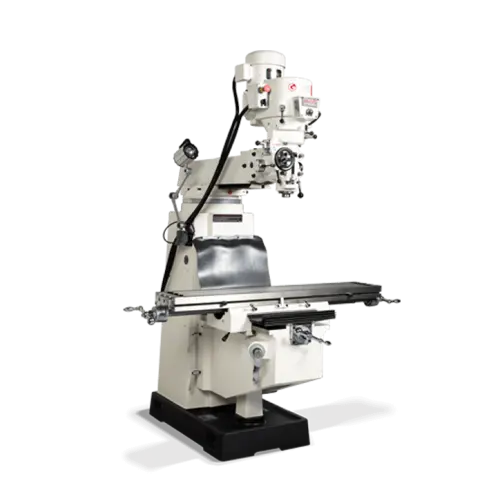

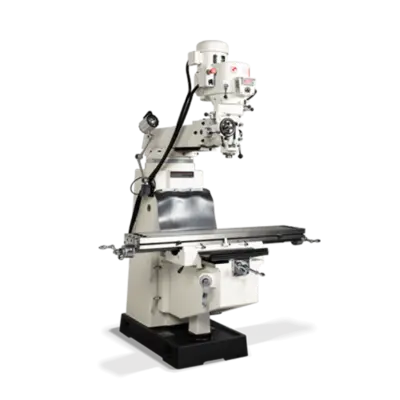

GANESH GMV-3F HEAVY DUTY VERTICAL MILLING MACHINE WITH 10" x 54" TABLE VARIABLE SPEED WITH SQUARE WAYS
Overview
Description
GANESH GMV-3F HEAVY DUTY VERTICAL MILLING MACHINE WITH 10" x 54" TABLE VARIABLE SPEED WITH SQUARE WAYS
LClass-7 Precision Spindle Bearings
L3-Horsepower Variable Speed Spindle
LSquare Box Slideways on Y & Z Axes
LHard-Chrome Plated, Ground & Lapped Quill
LR-8 Taper Spindle
LCoolant Proof Halogen Lamp Standard
Table Travel – X Axis (Optional Power Feed)
35” / 30.3”
Cross Travel – Y Axis
17.5”
Vertical Knee Travel – Z Axis
15.05”
Ram Travel (Overarm) / Swivel
18.5”
Spindle Nose-to-Table Surface Travel
5.3” – 20.7”
Z2 – Quill Travel – Manual & Power Feed
5”
Quill Feeds – With Trip Release – Inch
0.0015″ / 0.003″ / 0.006″
Quill Feeds – With Trip Release – Metric
0.04mm / 0.08mm / 0.16mm
Quill Diameter
3 – 3/8″
Leadscrew ground pitch (X & Y)
0.2″ per rev. (ballscrews optional)
Scale ring resolution in inches
0.001″ (5mm) (with adjustable zero position)
Ways – Hardened & Ground
Dovetail Ways in X axis / Square Box Ways in Y & Z axes
