PRESSMASTER 100 TON H-FRAME SHOP PRESS MODEL HFP-100 MFG. IN CANADA EXCELLENT CONDITION
AML Stock #003007

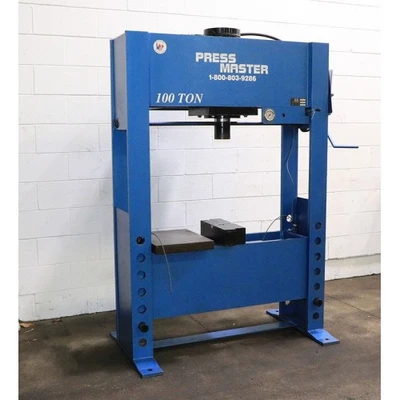

100 TON PRESSMASTER H-FRAME HYDRAULIC PRESS MODEL HFP-100
S/N 06002151T NEW 2006
RATED CAPACITY, TONNAGE....................... 100
STROKE........................................ 12"
BORE.......................................... 8"
RAM SPEED PRESS .............................. 20 IPM
RETURN ................. 26 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 13"
MAXIMUM DISTANCE FROM BED TO RAM ............. 33"
WEIGHT ................................. 2,400 LBS.
SHIPPING DIMENSIONS .................... 50" X 62" X 90"
STANDARD FEATURES:
- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO
USE THE PROPER SPEED FOR THE TASK.
- DOUBLE ACTING CYLINDER - PERMITS PULLING AND PRESSING
- SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
- ELECTRIC/HYDRAULIC OPERATION
- HEAVY DUTY STEEL STRUCTURE
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- LOW SPEED PUMP
- LOW SPEED BALDOR 10 HP, 3 PHASE MOTOR
- HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR
- LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES FOR HIGHER EFFICIENCY AND SAFER OPERATION
- SET OF V-BLOCKS
- PRESSING PLATE
NOT A CHEAP IMPORT! MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.
