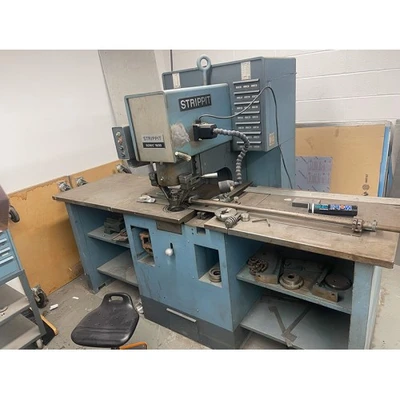

STRIPPIT 30 TON SINGLE END PUNCH MODEL SONIC 18/30 LOADED WITH TOOLING
AML Stock #002930
30 TON STRIPPIT SONIC 18/30 FABRICATOR MODEL SONIC 18/30
S/N 27261468 (1968)
Capacity ....................... 30 Ton
Stock Size ..................... 18” x 30”
Material Thickness ............. 1/4” max
Max. Hole size ................. 3/4" in 1/4" m.s.
Throat depth ................... 18”
Shut Height .................... 5-13/32"
Stroke ......................... 5/8”
Strokes per min. ............... 165
Motor .......... 1 HP / 1,200 RPM, 230/460 V, 3 Phase
Overall Dim.: 67” x 88” x 67”
Weight: 3,800 lbs.
- ELECTRIC FOOT PEDAL
- MISCELLANEOUS TOOLING & CABINETS WITH LARGE ASSORTMENT
OF PUNCHES & DIES
- 1-1/4" & 3-1/2" TOOL HOLDERS
- CORNER NOTCHING DIE
- LAMP
- BACKGAUGE WITH FINGER STOPS
CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NJ
