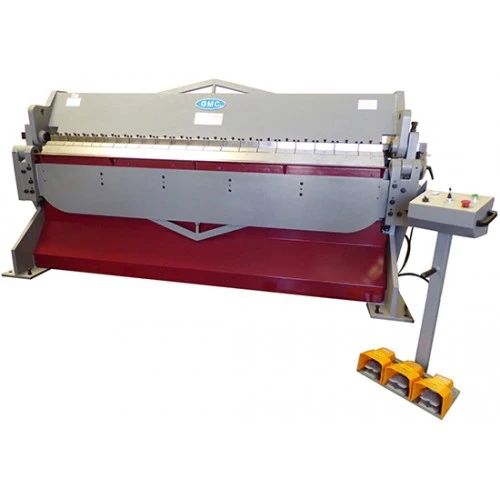

NEW GMC MACHINE TOOLS CORP. HBB-0610

GMC HYDRAULIC BOX & PAN BRAKE 6' x 10 GA. MFG. IN TAIWAN HEAVY DUTY MODEL HBB-0610
Also available 4' x 10 Ga., 8' x 10 Ga., 10' x 10 Ga., 10' x 14 Ga. and 12' x 14 Ga.
CALL MARC @ (732) 390-0006 TO INQUIRE ABOUT FREE DELIVERY TO YOUR LOADING DOCK!
Specifications

Max Bending Legth
6'

Capacity:
Mild Steel

10Ga.

Stainless Steel
12Ga.

Bend Angle Degree
135

Max. Box Depth
6"

Large Beam Opening
3"

Oil Tank Gal.
15

Main Motor
5 HP

Weight
5,350 lbs.

Overall Dimensions
91" x 43" x 69"

Standard Features

Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guide body ensures strong, stable, smooth & accurate movement

Total pieces fingers assortment:
HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts

Standard Included Equipment

Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
