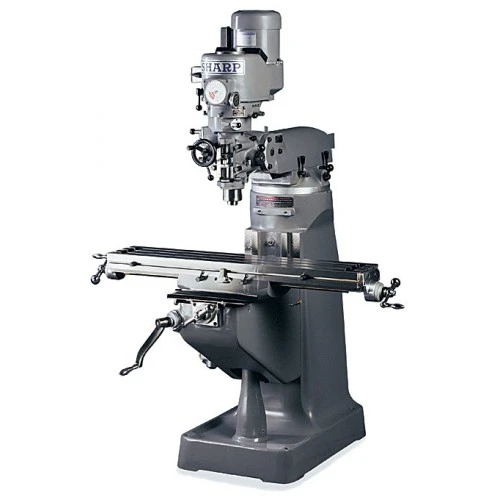

SHARP LMV-50 VERTICAL MILLING MACHINE WITH 9" x 50" TABLE VARIABLE SPEED
STANDARD EQUIPMENT:
Hard-Chrome Ways And Gibbs
Precision Ground And Flaked
Table
Unique Double Nut Backlash
System
Double Fan Cooling System
¨
Cutler Hammer On/Off Switch
Front And Rear Way Covers
One Shot Lube System (X , Y , Z
Axes)
Tool Kit Includes:
Machine
Manual, Half Nut Wrench, Wrench 17m, 19m, Set Of 6 Allen Wrenches, Philip Screw
Driver, Flat Head Screw Driver, Oil Can, Grease Gun, Rear Way Cover Bracket,
Pin For Indicator, Can Of Paint
FEATURES:
3HP Motor
Variable Speed Drive (60-4500
RPM)
R-8 Spindle
Dual Cooling Fans
Meehanite Casting
Chromed Ways
Self-Lubricating Motor Shaft
Extends Pulley Life
Abec-7 Super Precision Spindle
Bearings
Table
¨ Working Surface
9” x 50”
¨ T-Slots Number and
Size
3 Slots, 5/8”
Capacity
¨ Travels (X, Y, And
Z)
37” x 12” x 5”
¨ Ram
Travel
12”
¨ Knee
Travel
16”
¨ Spindle To Column
(Min-Max)
6-3/4”-18 1/2”
¨ Spindle Nose To Table
(Min-Max)
2-1/8”-18”
Spindle
¨ Spindle
Motor
3 HP
¨ Spindle Nose Taper
R8
¨ Spindle Variable Speed
Drive
60-4500 Rpm
¨ Quill Feed 3 Speed
(IPR)
.0015,.003, .006”
¨ Quill
diameter
3-3/8”
¨ Head
Swivels
360°
¨ Head Tilt (Lt. To
Rt)
45°
¨ Head Tilt (Up And
Down)
45°
Dimensions and Weight
¨ Floor Area (W x D x
H)
7’x 6.5’x 6.75’
¨
Weight
2,500 Lbs.
ü Total Power
Consumptions
220V
3KVA/8 amps
440V
3KVA/4 amps
Call Marc @ (732) 390-0006 for a formal quote. Digital Read Outs and Power Feeds Available
Please note this machine may be subject to an Ocean Freight Surcharge
