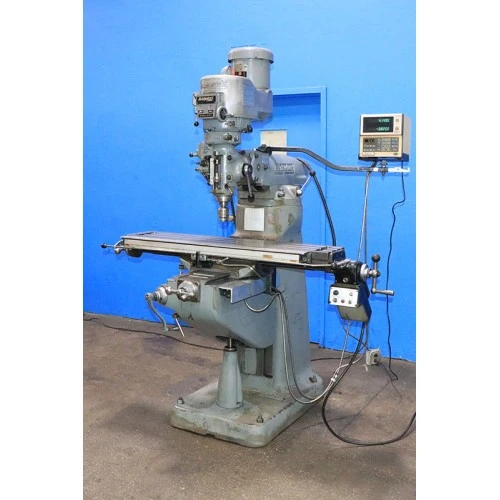

BRIDGEPORT 2 HP VARIABLE SPEED VERTICAL MILLING MACHINE WITH 9" x 48 TABLE, CHROME WAYS, MITUTOYO 2-AXIS DIGITAL READ OUT AND BRIDGEPORT LONGITUDINAL POWER FEED

BRIDGEPORT 2 HP VARIABLE SPEED VERTICAL MILLING MACHINE WITH 9" x 48 TABLE, CHROME WAYS, MITUTOYO 2-AXIS DIGITAL READ OUT AND BRIDGEPORT LONGITUDINAL POWER FEED
AML Stock #003008
BRIDGEPORT VERTICAL MILLING MACHINE MODEL: SERIES I
S/N: 12/BR 221017, NEW: 1981

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" /
2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN
................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... #30 QUICK CHANGE
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015",
0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

MITUTOYO TWO AXIS DIGITAL READOUT
BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL
CHROME WAYS
JACOBS DRILL CHUCK
BIJUR AUTOMATIC LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
