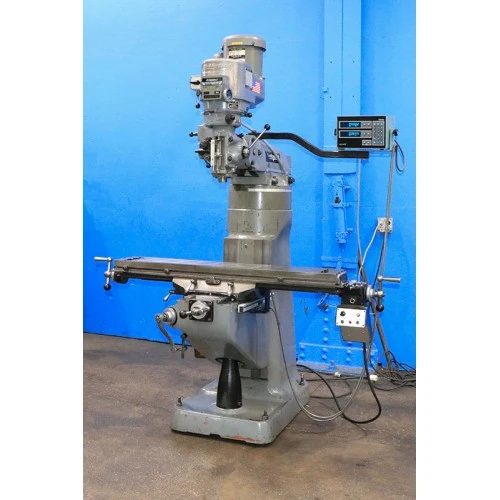

BRIDGEPORT 2 HP VARIABLE SPEED VERTICAL MILLING MACHINE WITH 9" x 48" TABLE ACU-RITE DIGITAL READ OUT BRIDGEPORT POWER FEED CHROME WAYS AND RISER BLOCK

BRIDGEPORT VERTICAL MILLING MACHINE MODEL SERIES I
S/N: BR 261467, NEW: 1992

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" /
2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN
................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015",
0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

ACURITE TWO AXIS DIGITAL READOUT
BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL
CHROME WAYS
4" RISER BLOCK
BIJUR ONE SHOT LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
