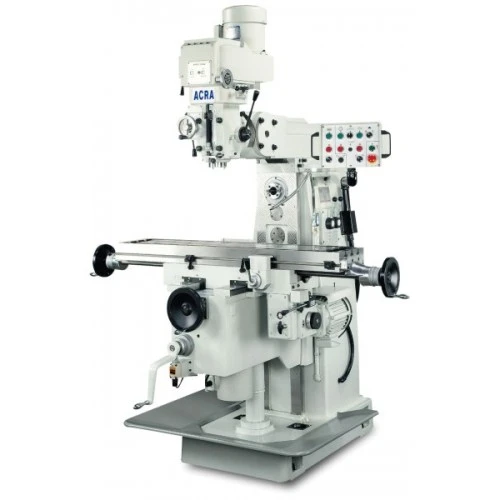

ACRA LC25VH HORIZONTAL VERTICAL MILLING MACHINE WITH 10" x 56" TABLE 5 HP PENDANT CONTROL POWER FEED TABLE MFG. IN TAIWAN NEW

ACRA LC25VH HORIZONTAL VERTICAL MILLING MACHINE WITH 10" x 56" TABLE 5 HP PENDANT CONTROL POWER FEED TABLE MFG. IN TAIWAN
Acra 10″ x 56″ Vertical and Horizontal Milling Machine, LC25VH
Model: LC25VH

Table Size: 10″ x 56″
X Travel: 36″
Y Travel: 16 1/2″
Z Travel: 5″
Main Motor Vertical: 5 HP
Main Motor Horizontal: 5 HP
Vertical/Horizontal Spindle: # 40 NST
Vertical Spindle RPM: 60 – 4,500 RPM
Horizontal Spindle RPM: 80 – 1,350 RPM
Voltage: 230 / 460v AC/3ph
Standard Equipment:
Flood Coolant System with Splash Pan
Rapid Knee Traverse
Two Over Arm Supports
Rear Rubber Way Cover
One Shot Lubrication System
Longitudinal Power Feed with Rapid Traverse
1″ Dia. Horizontal Arbor
Toolbox
Mechanical Specifications:
Overall Weight: approx. 4,200 lbs.
