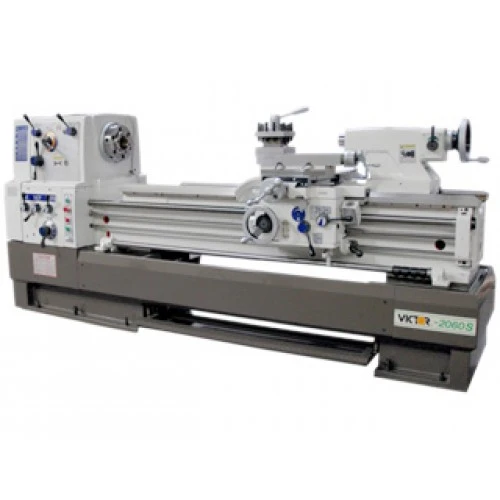

VICTOR 2060S ENGINE LATHE; 20" Swing x 60"cc; 3 1/8" Spindle Bore (D1-8 Camlock Spindle Type), 10 HP, 20 - 1550 RPMs; Swings 13" Over Cross Slide, Swings 26 3/8" Over Gap; Equipped with 10" 3-Jaw Chuck, 12" 4-Jaw Chuck, Steady Rest, Follow Rest, 4-Way Tool Post, Full Length Splash Guard, Face Plate; One Year Warranty; Very Heavy Duty Lathe, Mfg. in Taiwan
Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.
FEATURES:
Oversized rigid compound rest for heavy cutting
Hardened and precision ground gears and bedways
Hardened and ground spindle nose
Full Meehanite casting bed
Headstock transmission gears driven by spline shafts
The spindle is supported at 3 points by precision bearings
Safety overload device
Inch/metric threading without changing gears
10 HP main motor delivers full power at all 12 speeds
Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S
