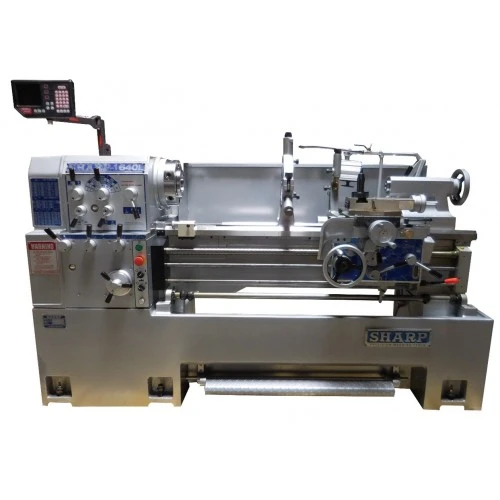

SHARP 1640LK ENGINE LATHE FULLY TOOLED WITH BISON 3-JAW CHUCK, STEADY REST, NEWALL DIGITAL READ OUT, DIGITAL VARIABLE SPEED, 3 1/16" SPINDLE BORE
Overview
Description
SHARP 1640LK ENGINE LATHE FULLY TOOLED WITH BISON 3-JAW CHUCK, STEADY REST, NEWALL DIGITAL READ OUT, DIGITAL VARIABLE SPEED, 3 1/8" SPINDLE BORE
STANDARD EQUIPMENT:
¨
Bison 3-Jaw Chuck 10”
¨
Coolant System
¨
Halogen Work Light
¨
Face Plate (16”)
¨
Steady Rest (1/2” – 6”)
¨
American Tool Post
¨
Full Length Splash Guard
¨
Follow Rest
¨
Newall NMS 300, 2 axes DRO
¨
Chuck guard ( lift up type) with limited switch
¨
Longitudinal Carriage Stops
¨
Please specify 230 V or 460 V
¨
Tool Kit includes:
Machine Manual, Set of 6 Allen wrenches, Phillip Screw
Driver, 2 sets of dead center, Flat Head Screw Driver, Oil can, Grease
Gun, Can of Paint
FEATURES:
¨
D1-8 Cam-lock, 3-1/16” Hole
¨
Direct Selection For Inch/Metric Threads
¨
One Piece Cast Meehanite Bed
¨
7-1/2 Hp Spindle Motor
¨
12-Speed Gear Head (40-2,000 Rpm)
¨
Geared Head Model Wired 220V or 440V. Please specify.
Specifications
ü Capacity
¨
Swing Over Bed 16”
¨
Swing Over Cross Slide 8-3/4”
¨
Travel of cross slide
9-1/2”
¨
Swing Over Gap 24.38”
¨
Width Of Bed 11.75”
¨
Width of Gap 9.75”
¨
Center height form top of compound
1.9”
¨
Distance Between Centers 60”
ü Headstock
¨
Spindle Nose Type D1-8
cam-lock
¨
Spindle Bore 3
1/16”
¨
Spindle Speeds High
235-2,000 RPM
Low 20-170
¨
Taper of Spindle Bore MT#6
¨
Taper of Center MT#4
ü Threads and Feeds
¨
Longitudinal Feeds – in/rev (18) 0.002
- 0.032”
¨
Cross Feeds – in / rev 0.0001
–0.0094”
¨
Inch Threads (40) 4-56
tpi
¨
Metric and Module Threads 0.5-7mm
¨
D.P. Threads (36) &a
