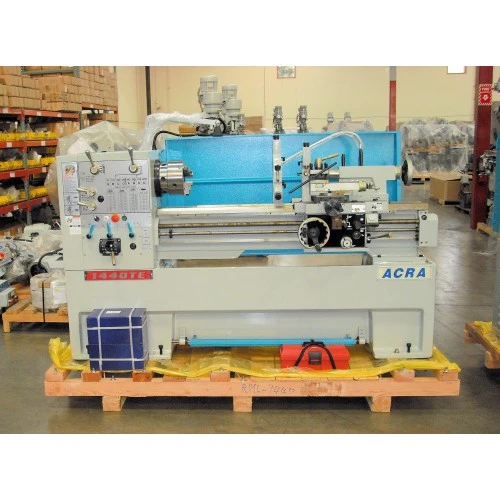

ACRA ATEL-1440TE HEAVY DUTY 14" x 40"cc PRECISION GEAR HEAD ENGINE LATHE FULLY TOOLED NEW

ACRA ATEL-1440TE HEAVY DUTY 14" x 40"cc PRECISION GEAR HEAD ENGINE LATHE FULLY TOOLED NEW
Acra 14" x 40" Precision Engine
Lathe - ATEL-1440TE, Mfg. in Taiwan
Bed & Stand:

One Piece
Cast Iron Floor Stand With Foot Brake

Front Move
Chip Tray Floor Stand Or Rear Chip Floor Stand Selected

Bed Width 10
1/4 " Bed Meehanite Casting, Vibration Stress Relieved

Induction
hardened And Precision Ground Bed Ways

Precision
Hand Scraped Removable Gap Bed

Spindle:

Machined From
Forged Alloy Steel, Hardened Ground & Dynamically Balance

Three Point
Support By High Grade Precision Machine Tool Taper Roller & Ball
Bearings

Apron:

Integrated
Automatic Device For Longitudinal & Cross Feeds, Forward And Reverse
Feeds

Headstock:

Dynamic
Balanced Spindle

Spindle Is
Supported By 3 Points Precision Dearings-2 Taper Roller And 1 Ball Bearing

Housing Are
Properly Stabilized And Deflection Free

All Gears And
Shafts Are Made By Chromium Molybdenum Steel With Segmentation And
Precision Ground

Nylon Safety
Gears In End Train

Universal Gear Box:

Induction
Hardened And Ground Gears And Shafts

Wide Threads
Cutting Capacity For Imperial, Metric, Module Pitch And Diametrical Pitch

Carriage & Slide:

Anti-Float
Design, Backlash Eliminator Fitted In Cross Slide Nut

Safety
Clutches At Feed Shaft Lever

Dual Reading
Dials

One Shut
Lubrication For Carriage And Tops Slide

Standard Equipment:

8” 3 Jaw
Chuck

10" 4
Jaw Chuck

Steady/Follow
Rest

Coolant
System

Halogen Light

4 Way Tool
Holder

Full Length
Splash Guard

Chuck Guard
