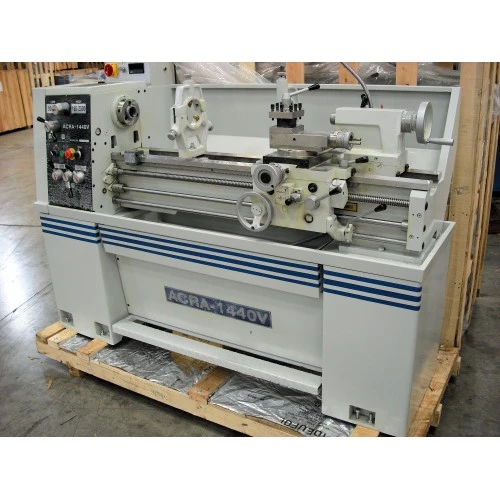

ACRA 1440SVS VARIABLE SPEED GEAR HEAD ENGINE LATHE INCH METIC FULLY TOOLED MFG. IN TAIWAN NEW

ACRA 1440SVS VARIABLE SPEED GEAR HEAD ENGINE LATHE INCH METIC FULLY TOOLED MFG. IN TAIWAN

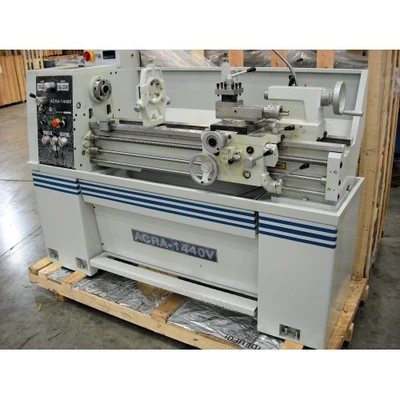

Acra SVS Precision AC Vari-Speed Engine Lathe - 1440SVS
Features:

Made In Taiwan
BED
One Piece Casting Base
Quality Cast Iron FC30 with Vibration Relieved Stress
Induction Hardened And Precision Ground 5HP (3.75Kw) 3-Phase High Frequency Motor
Foot Brake
Emergency Stop Button
Jogging Switch Button
SPINDLE
Electronic Infinitely Variable Speed With A.C. Inverter
Supported by 2 Taper Roller Precision Bearings
Camlock D1-4 Spindle Nose
0.38mm (1 1/2") Spindle through Hole
UNIVERSAL GEAR BOX
Complete Threading Range: 40 Imperial threads And 37 Metric Threads
Easier Lubrications With enclosed Gearbox
HEAD STOCK
2 Headstock Gear Speed Ranges
Electronic Control Panel With RPM Display, Light Indicator For High+Low Speed Ratio, Speed Control Electric Knob, Emergency Switch And Motor Start Push Button.
APRON AND SADDLE
Automatic Feed And Threading, Fully Interlocked
Saddle And Top Slide Locking System
Forward-Off-Reverse Lever
4 Way Tool Post
T Slot Compound
TAILSTOCK
Rigid Construction And Super Tight Clamp
Morse Taper No.3 Internal Taper
Hardened and Ground Tang Quill

CAPACITY
Swing Over Bed: 14"
Swing Over Cross Slide: 8-5/8”
Swing In Gap: 20"
Distance Between Centers: 40"
Bed Width: 8-1/2”
HEADSTOCK
Spindle Nose: D1-4
Spindle Bore: 1-1/2”
Taper of Spindle: MT NO.5
Spindle Speeds - Steps Variable Speed 2 step
Spindle Speeds - Range 30 ~ 2500 RPM
CARRIAGE
Cross Slide Travel: 6 1/2"
Compound Slide Travel: 4”
THREADS & FEEDS
Inch Threads: 1~56 TPI
Metric Threads: 0.45 ~ 7.5 mm
Longitudinal Feeds: 0.0011 ~ 0.0543"/rev
Cross Feeds: 0.0003 ~ 0.0181"/rev
TAIL STOCK
Quill Diameter: 1-9/16"
Quill Travel: 4-3/4”
Quill Taper: MT NO.3
POWER
Spindle Drive Motor: 5 HP
Voltage: 220 / 440V AC / 3 PH
MACHINE WEIGHT & DIMENSION
Net Weight: 1,635 LBS
Shipping Weight: 2,000 LBS
Dimension (LxWxH): 71" x 32" x 51"
