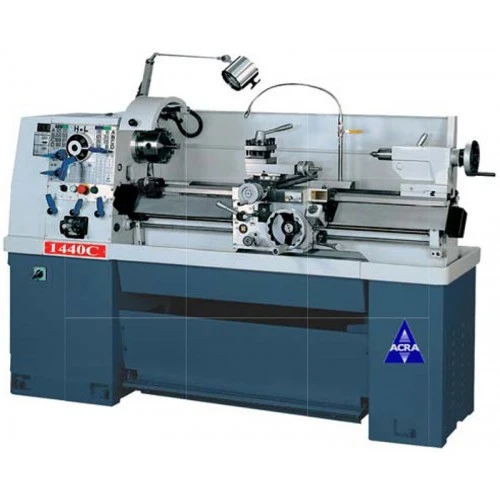

ACRA 1440C PRECISION GAP BED ENGINE LATHE CLAUSING COLCHESTER TYPE WITH TOOLING TAIWAN NEW

ACRA 1440C PRECISION GAP BED ENGINE LATHE CLAUSING COLCHESTER TYPE WITH TOOLING TAIWAN NEW

Capacity: 14”/20” x 40”Swing over Bed: 14-1/8″Distance Between Centers: 40″Swing over Cross Slide: 8-5/8″Swing over Gap: 20-7/8″Width of Bed: 9”Spindle Nose to Gap: 6-3/8”Cross Slide Travel: 7″Compound Travel: 4″Compound Slide Travel: 4″Spindle Nose: D1-4Spindle Bore: 1.-5/8″Spindle Taper: MT #5Spindle speeds: (8) 80-2,000 RPMTail-stock Taper: MT #3Tail-stock barrel travel: 4-1/2″Tail-stock barrel diameter: 1-7/8″Inch Threads: (45) 2 ~ 72 TPIMetric Threads: (39) 0.2-14 mmModular Pitches: (18) 0.3 – 3.5 MPDiametrical Pitches: (21) 8-44 DPLongitudinal Feed Range: 0.002 to 0.067 IPRCross Feed Range: 0.001 to 0.034 IPRNumber of Feed selections: 17Coolant Motor size: 1/8 HPSpindle Motor size: 5 HPVoltage: 230/460V, 3-PH, 60 cycle
Standard Equipment:
• Allen-Bradley® controls.• Signature South Bend three V-way bed.• 6″ 3-Jaw scroll chuck w/ D1-5 back plate• 8″ 4-Jaw independent chuck D1-5• 10″ Faceplate D1-4• Safety Chuck Guard with microswitch shut-off• Steady Rest with roller tips• Two MT #3 Dead Centers• Threading Dial Indicator• Six Leveling Pads• NTN Japanese Spindle Bearings• 4-Way Tool Post• Halogen lamp• Complete Coolant system• Micrometer Carriage stop• Spindle Sleeve MT #5/MT #3• Full Length Back Splash• Foot Brake• Front Removable pull-out Chip Tray• Tool set and box• Spindle Nose to Gap: 6-3/8″• Follow rest• Operation manual and parts list EXTRA LONG SADDLE W/ GIBS
