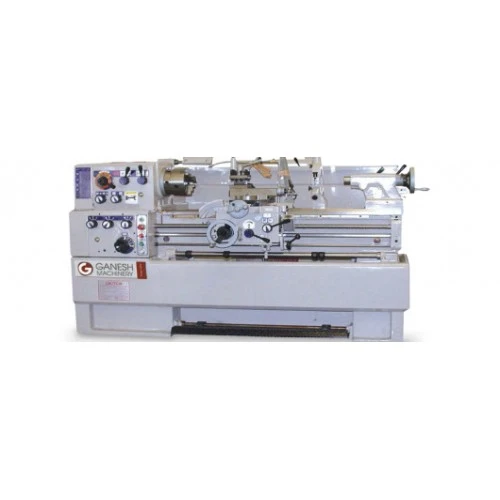

NEW GANESH GT-1660S

GANESH 16" x 60"cc PRECISION GEAR HEAD ENGINE LATHE MODEL GTW-16 FULL TOOLED; HEAVY DUTY MEHANITE CASTING
2 1/16" SPINDLE BORE

7 1/2 HP
30 - 2000 RPM
D1-6 CAMLOCK TYPE
EQUIPPED WITH 8" 3-JAW & 10" 4-JAW CHUCK, STEADY REST, FOLLOW REST, FULL LENGTH SPLASH GUARD, CHUCK GUARD, FOOT BRAKE, 4-WAY TOOL POST, LEVELING PADS & HALOGEN WORK LIGHT
Capacity & Dimensions-
Swing over Bed 16” 410 mm
Center height 8-1/16” 205 mm
Swing over Cross Slide 9-7/16” 240 mm
Swing thru Gap 23-7/16” 595 mm
Length of Gap in front of face plate, D1-6 / A1-6 6-1/8” / 6-7/8” 155 mm / 175 mm (optional)
Bed casting width / bed casting height 11-13/16” / 12.20” 300 mm / 310 mm

Spindle-
Spindle Motor Horsepower 7.5 HP 7.5 HP
Spindle speeds – 12-speeds 30 – 2000 rpm)
(+ = High & - = Low)

Spindle Bore 2-1/16” 52 mm
Spindle Nose D1-6 A1-6 optional
Spindle taper in spindle nose MT-6 Morse Taper #6

Maximum Weight Capacity w/17kg Chuck
The work piece loading by chuck 150 kg
The work piece loading by chuck + tailstock center 350 kg
The work piece loading by chuck + tailstock center + one steady rest 700 kg

Carriage -
Cross slide travel / Cross slide width 9” / 7-3/32” 230 mm / 180 mm
Cross slide lead screw pitch 4 TPI
Cross slide resolution per division 0.50” /rev. (On diameters)
Carriage lead screw diameter / pitch 1-1/4” / 4 TPI 32 mm / 6 mm pitch
Feed rod dimensions 7/8” hexagon 23 mm hexagon

Compound-
Compound top slide travel / Compound width 4-3/4” / 4-11/32” 120 mm / 110 mm
Cutting tool height maximum 1.0” x 1.0” 25 mm x 25 mm

Tailstock- Engraved with inch / metric quill graduations
Quill diameter 2-1/8” 54 mm
Quill stroke 4-3/4” 120 mm
Quill taper MT-4 Morse Taper #4
Quill tang drive and drift-slot for tailstock included
Tailstock body set-over adjustment ±0.04” ± 1 mm

Thread Cutting-
Thread cutting range – 40 inch pitches 2 – 56 TPI
Thread cutting range – 53 metric pitches 0.4 – 14 mm
Thread cutting range – 32 diametral pitches 4 – 32 D.P. Optional
Thread cutting range – 44 module pitches 0.4 – 7 M.P. Optional

Feeds- (with clutched feed shaft for safety)
Feeds – longitudinal - 40 feeds 0.0012” – 0.0252”/rev. 0.032 mm – 0.898 mm/rev.
Feeds – cross - 40 feeds 0.0006” – 0.0126”/rev. 0.016 mm – 0.449 mm/rev.
Feed stop control shaft 4-adjustable automatic feed stops to disengage the longitudinal feed

Power-

Coolant pump motor 220 vac, 1/8-HP, 3-Phase
Power requirements 220 vac, 7.5-HP, 3-Phase @20 amps
