8.5" x .393" OTO Mills Tube Mill Line

Specifications:
Manufacturer: OTO
Strip Width: Min 11.02” Max 27.17”
Strip Thickness: Min .098” Max .393”
Tube Diameter Range: 3.50” – 8.62”
Maximum Production Speed: 262 FPM

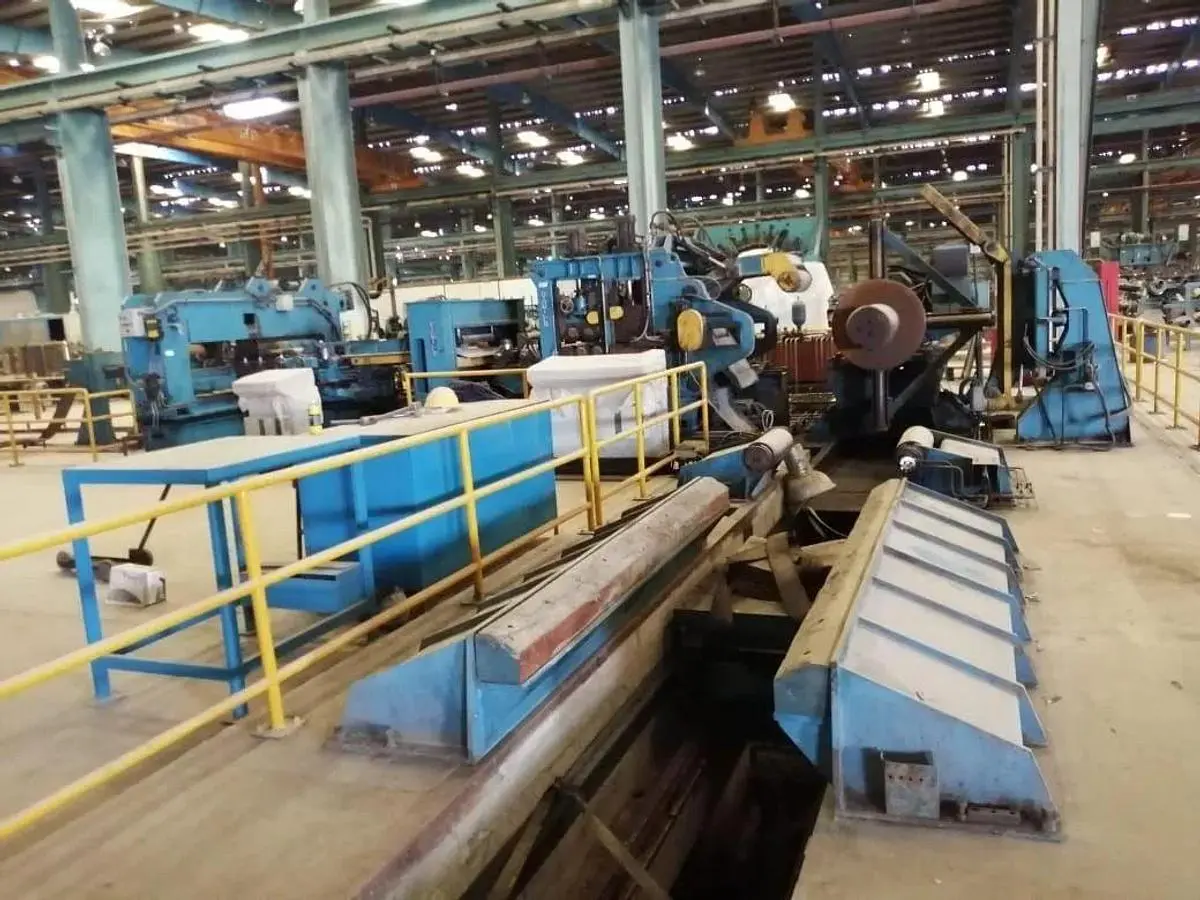

Entry Equipment:
Coil Storage Rack
Coil Loading Carriage
Single Uncoiler: 33,069 lb
Coil Holding Rolls
Peeler Hold Down Roll
Bulkhead with Two Tilting Rolls
Pinch Rolls with 5 Roll Straightener
Edge Guides
Pre-Joining Shear
Strip Joiner:
Model: GG 8010
Hydraulic Shear with Lateral Guides

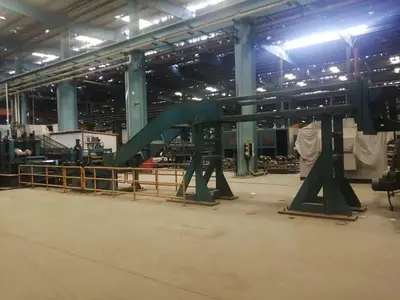

Accumulator:
Manufacturer: SMS Meer / Oto Mills
Type: Horizontal Accumulator
Model: SPSP 220
Capacity: 984 ft
Fill Speed: 656 FPM
Drive: 119 HP
Entry Section:
Pinch Rolls
Edge Guides
Entry Strip Station

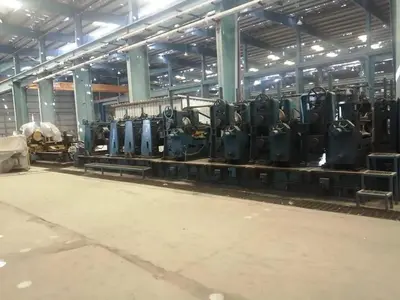

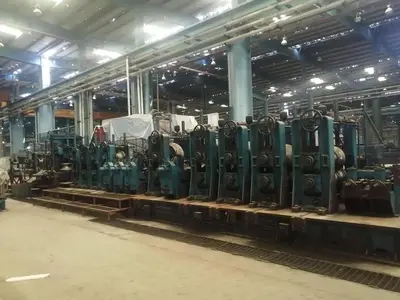

Forming Mill:
Entry Pre-Forming Stand
2 Sets of Edge Guides
4 Forming Stands
1 Side Roll Stand
1 Additional Forming Stand
3 Side Roll Cluster Stands
3 Fin Pass Stands
2 Roll Weld Box
Seam Guide Rolls
ID Scarfing
Double OD Scarfing
Exit Pull Out Stand
Welder:
Thermatool Solid State Welder
CFI Series
Power: 805 HP
Frequency: 300 KHZ
Seam Annealing:
Thermatool Seam Annealers
Quantity: 2 Units
Power: 671 HP Each
Voltage: 460 Volt
Frequency: 50/60 HZ
Annealing Frequency: 3 KHZ
Cooling Section
Sizing Mill:
4 Sizing Stands
4 Side Roll Stands
3 Turks Heads
1 Straightening Stand
Flying Cutoff:
Type: Dual Blade Cold Saw
Manufacturer: TCC
Model: 80 Twin Electric Double Cold Saw
Blade Diameter: 24.41”
Saw Motor: 50 HP
Accelerator Motor: 139 HP

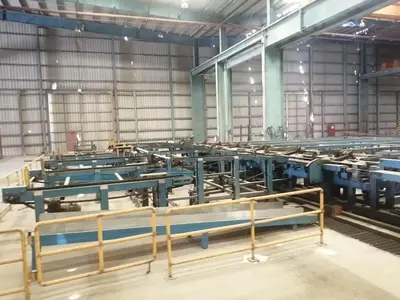

Run Out Table
Packaging Line
Tooling:
Round, Square, and Rectangular Tooling
Tooling List Available Upon Request
