6.5" x .280" OTO Mills Tube Mill Line

Specifications:
Manufacturer: OTO
Strip Width: Min 7.80” Max 20.87”
Strip Thickness: Min .079” Max .280”
Tube Diameter Range: 2.50” – 6.62”
Square Tube Range: 2.0” – 5.12”
Rectangular Tube Range: 2.36” x 1.57” to 6.30” x 3.94”
Maximum Line Speed: 295 FPM

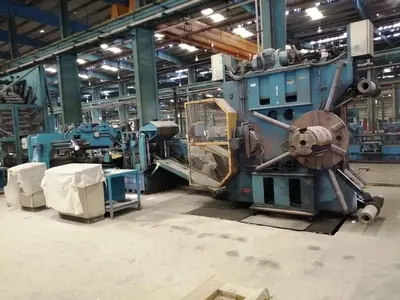

Entry Equipment:
14,000 lb Double End Uncoiler
Pinch Rolls and Straightener
Strip Joiner: Model GG 568
Vertical Loop: FR 465 H

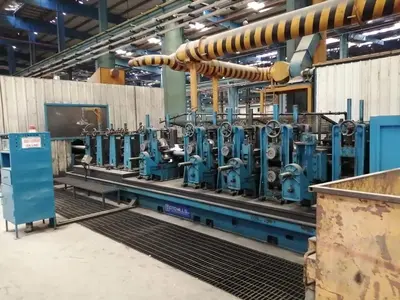

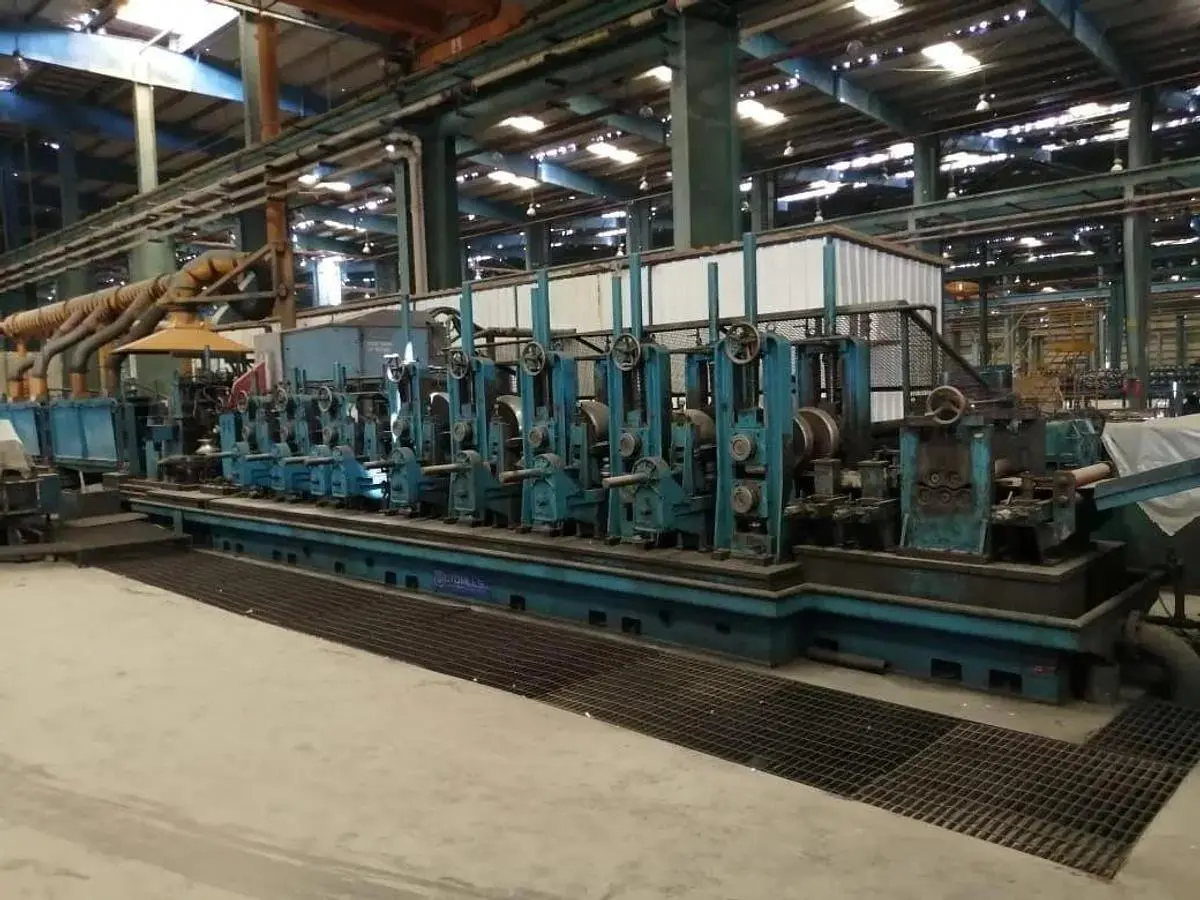

Forming Mill:
Entry Edge Guides
5 Roll Flattener
2 Sets of Edge Guides
5 Forming Stands
4 Side Roll Stands
2 Side Roll Cluster Stands
3 Fin Pass Stands
2 Side Roll Stands
Forming Mill Main Drive: 212 HP
Fin Pass Drive: 212 HP
Pinch Roll Drive: 261 HP
Welder:
Thermatool Solid State Welder
CFI Series
3/4 Roll Welding Box
Double OD Scarfing
Welder Power: 671 HP
Cooling Section
Sizing Mill:
4 Sizing Stands
4 Side Roll Stands
Turks Heads
Sizing Mill Drive: 212 HP
Flying Cutoff:
TCC 120/168 Friction Saw
Blade Diameter: 31.50”
Saw Motor: 147 HP
Accelerator Motor: 101 HP

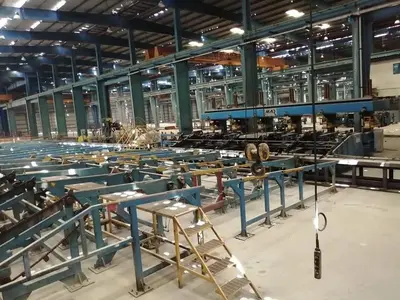

Run Out Table

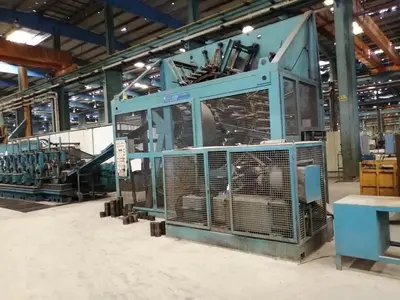

Packaging Line:
Manufacturer: Mair
Model: MPS RH200/D/6/SL
Tube OD Range: 2.38” – 6.63”
Cut Length Range: 13.1’ – 42.7’
Square and Rectangular Bundle Size: 9.84” x 7.87” to 29.53” x 23.62”
Hexagon Bundle Size: 11.81” x 10.24” to 27.56” x 24.02”
Maximum Bundle Weight: 8,818 lb
End Finishing:
Dual Head End Facer and Beveler
Pipe Diameter Range: 2” – 6”
Pipe Length Range: 19.7’ – 39.4’
Outside Bevel: 30 Degrees
Inside Bevel: 45 Degrees
Hydrostatic Tester:
Dual Head Hydrostatic Tester
Maximum Test Pressure: 4,061 PSI
Pipe Diameter Range: 2.38” – 6.63”
Pipe Length Range: 18.0’ – 42.7’
Washing Station Included
Tooling:
Round, Square, and Rectangular Tooling
Tooling List Available Upon Request
