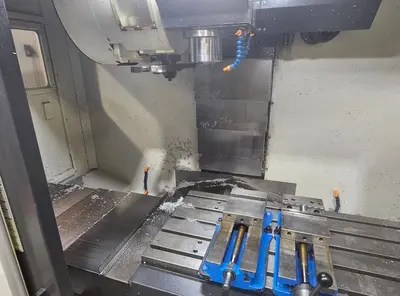

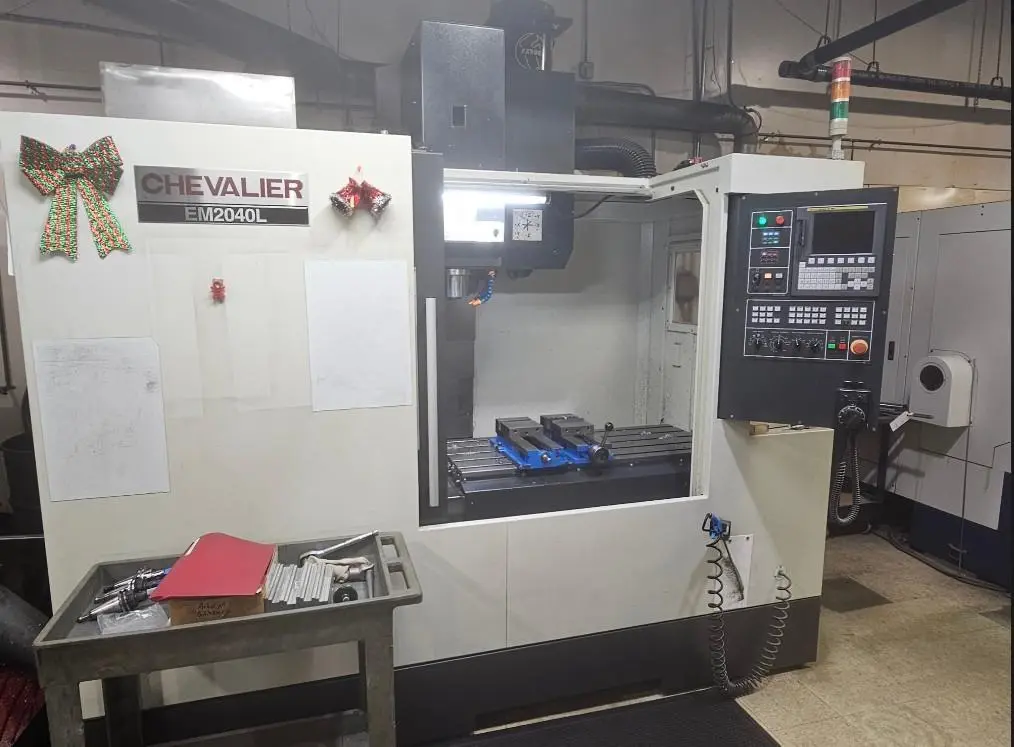

USED 2009 CHEVALIER EM-2040L

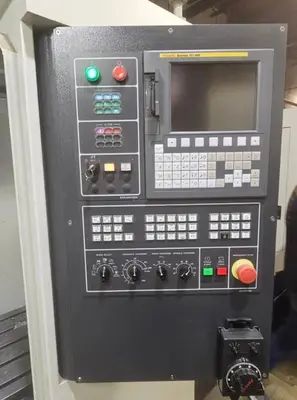

Fanuc 0i-MF CNC Control

5,498 Cutting Hours
The Chevalier EM-2040L is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Fanuc 0i-MF
# Axis: 3
Table Size: 47.2" x 20.1"
Table Capacity: 1,320 pounds
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Rapid Traverse Rate (X/Y/Z): 1,417/1,417/944 ipm
Spindle Taper: CAT 40 Big Plus
Spindle Speed: 10,000 rpm
Main Motor: 20 hp
Tool Changer Capacity: 24
Machine Dimensions: 107" x 119" x 103"
Machine Weight: 13,600 pounds

- Fanuc 0i-MF CNC Control
- Coolant Tank & Pump
