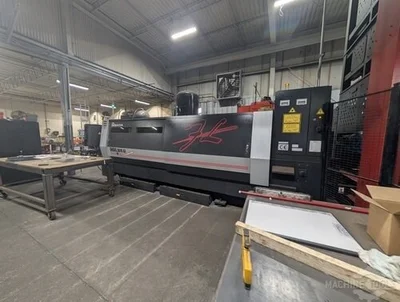

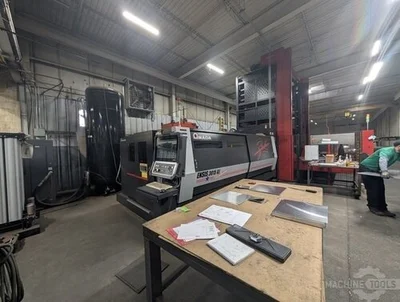

USED AMADA ENSIS 3015 AJ FIBER

Brand – AMADA Model – ENSIS 3015 AJ FIBER Type – Laser Cutters Year – 2016 Condition – Used – Good

Sheet-W: 60″
Sheet-L: 120″
Wattage: 2 kw
IPM: 4724 ipm
X: 121″
Y: 61″
Z: 3.93″
Weight: 27,000

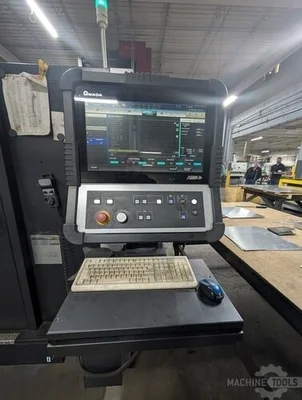

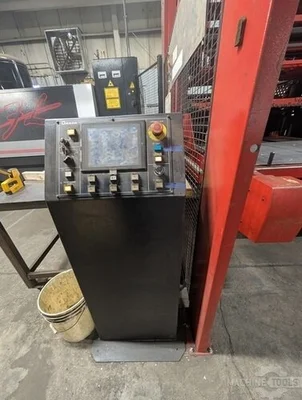

Control: CNC (AMNC-3i)
Travel Method: Stationary table; X, Y, and Z axis movement for cutting head Control Method: X, Y, and Z simultaneous 3-axis control Drive Motors: Fanuc AC Servo motors Maximum Sheet Size (X, Y): 120″ x 60″ Maximum Axis Travel (X, Y, Z): 121″ x 61″ x 3.93″ Maximum Positioning Speed (X, Y): Per axis: 4,724 in/min 45° vector: 6,693 in/min Maximum Speed Z-Axis: 4,724 in/min Repeatability: ±0.0002″ Maximum Material Weight: 2,000 lbs Maximum Material Thickness: Mild Steel: 0.875″ Stainless Steel: 0.375″ Aluminum: 0.312″ Assist Gas: 4 ports with NC pressure control Electrical Requirements: 200V, 3-phase, 60 Hz

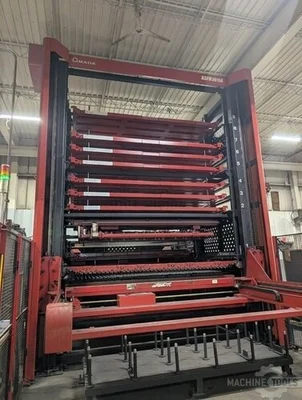

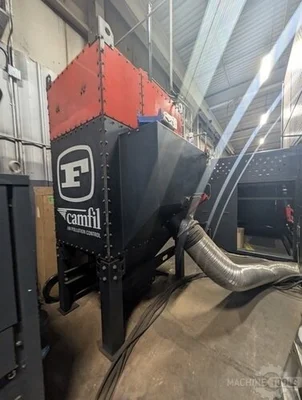

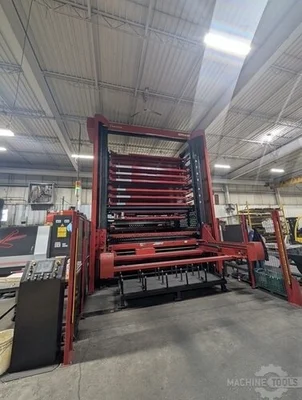

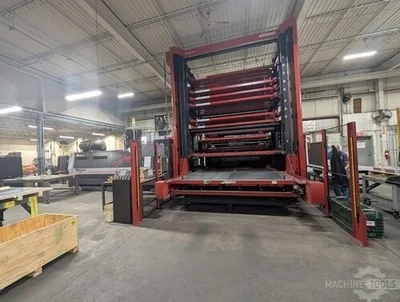

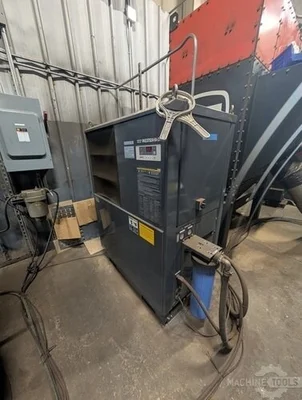

ASFH3015E – High Speed Pallet Changer (9 Stations) AMNC 3i Control Amada Ensis 2000 – 2kW Resonator Orion RKE3752A-VA-D Chiller Farr Gold Series Dust Collector
