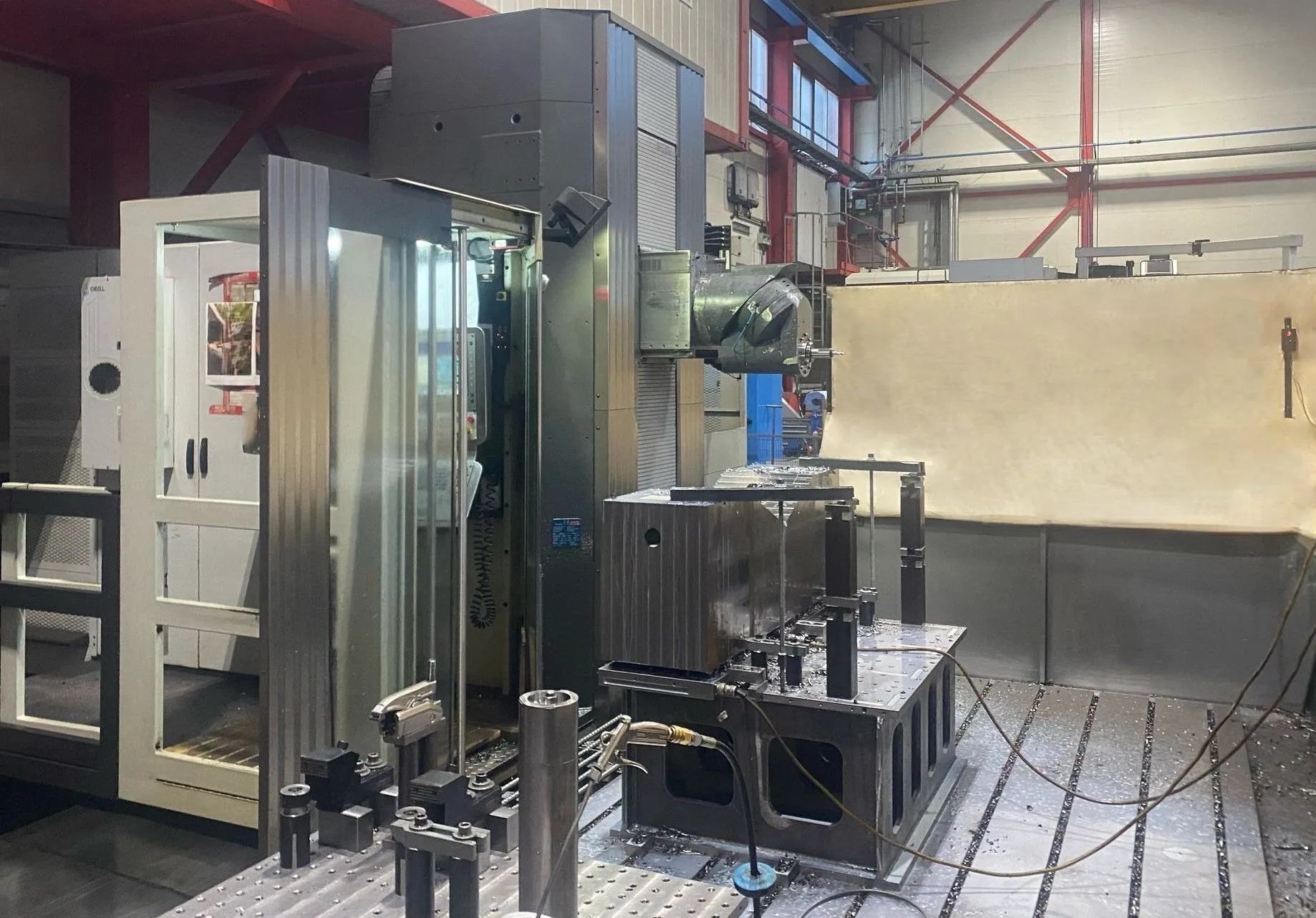

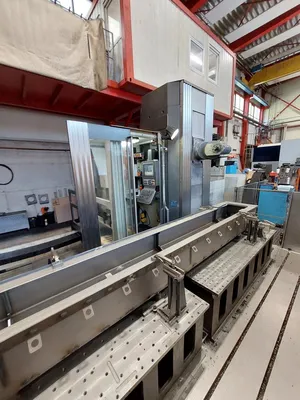

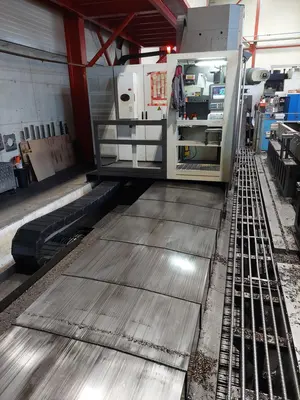

The CORREA AXIA 70 is a heavy-duty mobile column milling machine designed for high-precision machining of large workpieces. It offers long travels of 7,000 mm on the X-axis, 1,250 mm on Y, and 1,500 mm on Z, making it suitable for large structural components and demanding general machining.
The machine is equipped with an ISO 50 taper and a 6,000 rpm spindle, driven by a 37 kW motor, providing the torque and stability required for roughing and finishing operations. With a robust machine weight of approximately 40,000 kg, it delivers excellent rigidity for consistent accuracy.

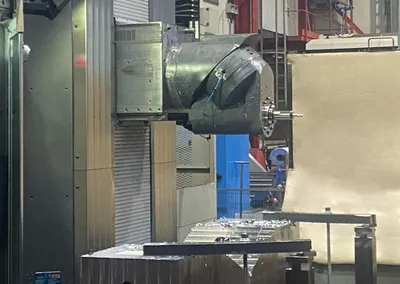

It features a HEIDENHAIN 530 CNC control, an automatic UAD milling head with 0.02° indexing, and a 60-tool automatic magazine, supporting flexible multi-operation machining. For productivity and reliability, it includes 30-bar through-spindle coolant, a cooled electrical cabinet, and a chip conveyor. The machine is supplied with two STOLLE tables (4,000 x 2,400 mm each), enabling large-part setups and efficient handling.
| Table-W | 2,500 mm | 98.425" |
| Table-L | 4,000 mm | 157.48" |
| # Axis | 5 | 5 |
| Travel-Long | 7,000 mm | 275.59" |
| Travel-Cross | 1,250 mm | 49.213" |
| Power | 37 kW | 49.6 hp |
| RPM | 6,000 RPM | 6,000 RPM |
| Taper | ISO-50 / HSK-100 | ISO-50 / HSK-100 |
| Control | CNC (HEIDENHAIN iTNC 530) | CNC (HEIDENHAIN iTNC 530) |
| Dimensions | 11,900 x 5,170 x 4,225 mm | 11,900 x 5,170 x 4,225 mm |
| Weight | 40,000 kg | 40,000 kg |
Reference: 073-D005
X-axis travel: 7,000 mm
Y-axis travel: 1,250 mm
Z-axis travel: 1,500 mm
Taper: ISO 50
Spindle speed: 6,000 rpm
Power: 37 kW
Machine weight: 40,000 kg
Machine dimensions: 11,900 x 5,170 x 4,225 mm
Equipped with:
Control: HEIDENHAIN 530
Automatic head: UAD Automatic 0.02°–0.02°
Tool magazine: 60 tools
Electronic handwheel: HEIDENHAIN HR-410
2 STOLLE tables: 4,000 x 2,400 mm each
Through-spindle coolant 30 bar: Yes
Electrical cabinet with cooling: Yes
Chip conveyor: Yes
