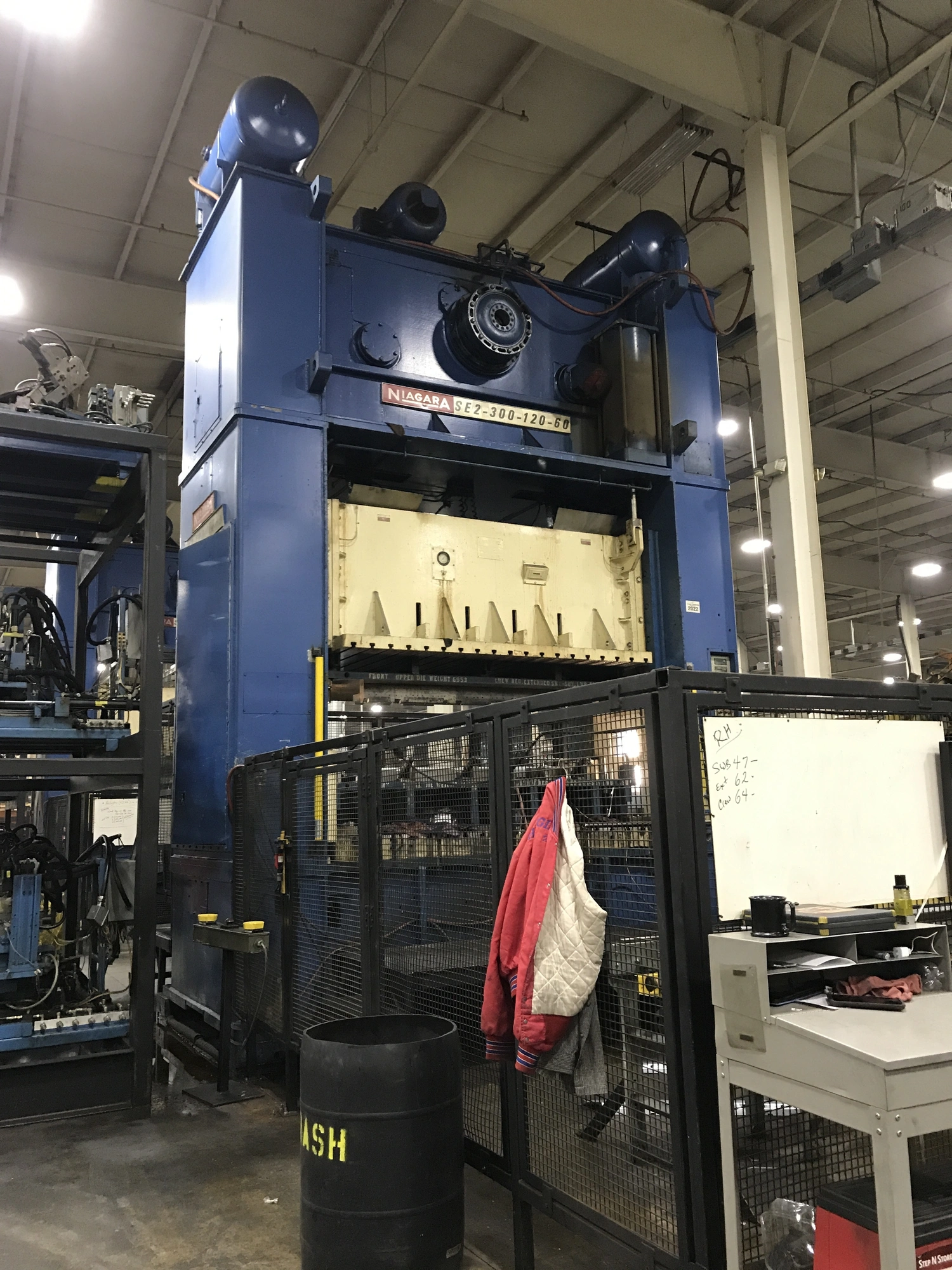

USED 1976 NIAGARA SE2-300-120-60

Used 300 Ton Niagara Two Point Eccentric Geared Press, 1976. Model SE2-300-120-60, straight side double crank. Specs: 120"x60" bed, 24" stroke, 48" shut height, 20 SPM. Features air clutch & brake, air counterbalances. Approx. weight 130,000 lbs.

Capacity: 300 Ton
Stroke: 24”
Shut Height: 48”, SDAU Over Bed
Slide Adjustment: 16”
Bed Area: 120” L-R x 60” F-B
Slide Area: 120” L-R x 60” F-B
Speed: 20 SPM

Equipped With:
Air Clutch & Brake
Air Counterbalances
Floor Standing
Subject to plant release

Estimated Overall Weight: 130,000 lbs
Approximate Overall Dimensions: 185” L-R x 91” F-B x 291” Above Floor
