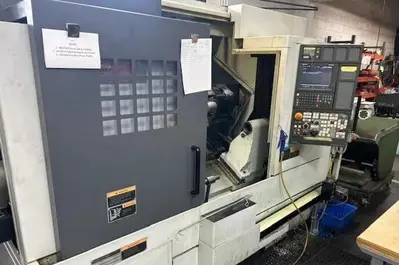

USED 2007 MORI SEIKI NL2500MC/700
Overview
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

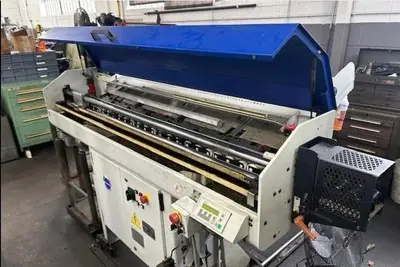

Barfeeder Unit

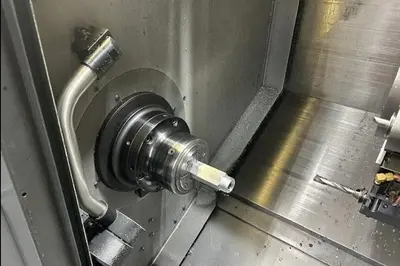

Collet Chuck
Tool Presetter
Chip Conveyor
Parts Catcher
Parts Exit Conveyor
Tailstock
Complete Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface
All Available Static Tooling
All Available Manuals
Specs
Control: Mori/Fanuc MSX-850 III
Chuck Size: Collet Chuck
Maximum Swing over Bed: 36.4"
Maximum Swing Over Cross Slide: 29.7"
Maximum Turning Diameter: 14"
Maximum Turning Length: 27.7"
X-Axis Travel: 10.2"
Z-Axis Travel: 31.3"
Spindle Nose / Spindle Bore: A2-8" / 3.1"
Spindle Speeds: 4,000 RPM
Spindle Motor: 25 HP
Rotary Tool Speed / Rotary Motor: 6,000 RPM / 7.5 HP
Number of Tool Positions: 12 Station Turret
Rapid Traverse Rates X, Z / Y: 1181 IPM / 394 IPM
Machine Dimensions: 122" x 76" x 84"
Machine Weight: 13,640 lbs.
