USED 2012 HAAS VF-3YT/40

Coolant Thru the Spindle - 300 PSI
40 Station Side Mounted Tool Changer

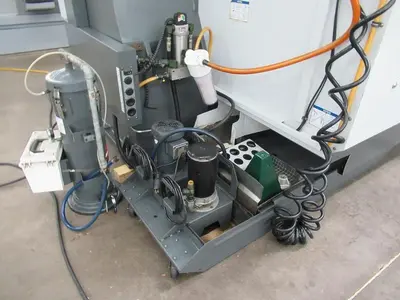

Auxiliary Coolant Filter System
Haas Probing with Tool & Part Probe (WIPS)
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Auger Style Chip Conveyor
2 Speed Gearbox
Programmable Coolant Nozzle
Rigid Tapping
Vector Drive Spindle
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 360-480V Electrics

**Servo On Hours 8,161**

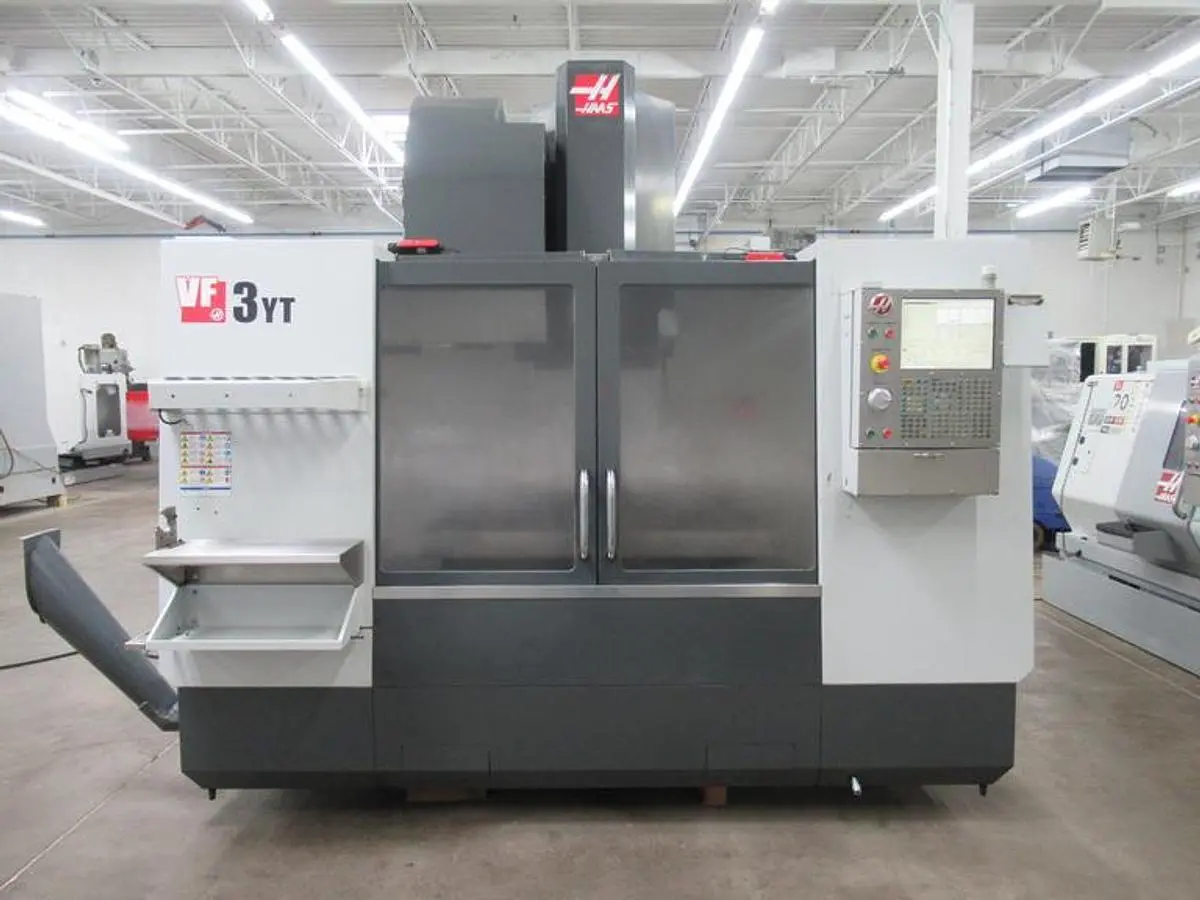

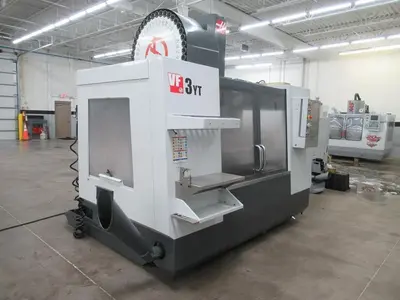

This 2012 Haas VF-3YT/40 CNC Vertical Machining Center is a reliable choice for high-precision machining tasks. It comes equipped with a Haas MainCon CNC Control and offers a spacious 54" x 25" table capable of supporting up to 3,500 lbs. of weight, making it suitable for a variety of workpieces. The machine's axis travels are 40" in the X-axis, 26" in the Y-axis, and 25" in the Z-axis, providing ample flexibility for complex machining jobs.

The spindle features a CAT 40 taper and operates at speeds up to 8,100 RPM, supported by a robust 20 HP motor. It also includes a 2-speed gearbox for optimized performance. The 40-station side-mounted automatic tool changer enhances productivity by allowing quick 4.2-second tool changes. The machine incorporates advanced functionalities like Coolant Thru Spindle and Haas Probing, ensuring efficient operation and reduced downtime.

Additional features include a rapid traverse rate of 1,000 IPM in the X/Y axes and 710 IPM in the Z-axis, with cutting feedrates reaching up to 650 IPM. Measuring 144" x 97" x 113" and weighing 14,900 lbs., this machine is both robust and efficient, suited for heavy-duty industrial operations. The machine's auger and Pcool system further streamline operations, making it an optimal choice for businesses seeking reliability and performance in a used CNC VMC.

Control: Haas MainCon CNC Control
Table Size: 54 x 25"
Maximum Weight on Table: 3,500 lbs.
Distance Spindle Nose to Table Top: 4" - 29"
X-axis travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Spindle Taper: CAT 40
Spindle Speed: 8,100 RPM - 2 Speed Gearbox
Spindle Motor: 20 HP
Number of Tool Positions: 40 Station Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 7" / 16" / 30 lbs.
Tool Change Time Chip to Chip: 4.2 seconds
Rapid Traverse Rates X/Y, Z: 1000 IPM / 710 IPM
Cutting Feedrates: 650 IPM
Machine Dimensions: 144" x 97" x 113"
Machine Weight: 14,900 lbs.
