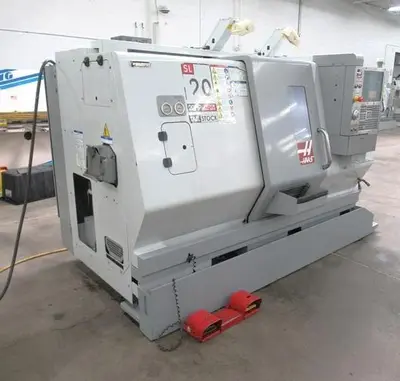

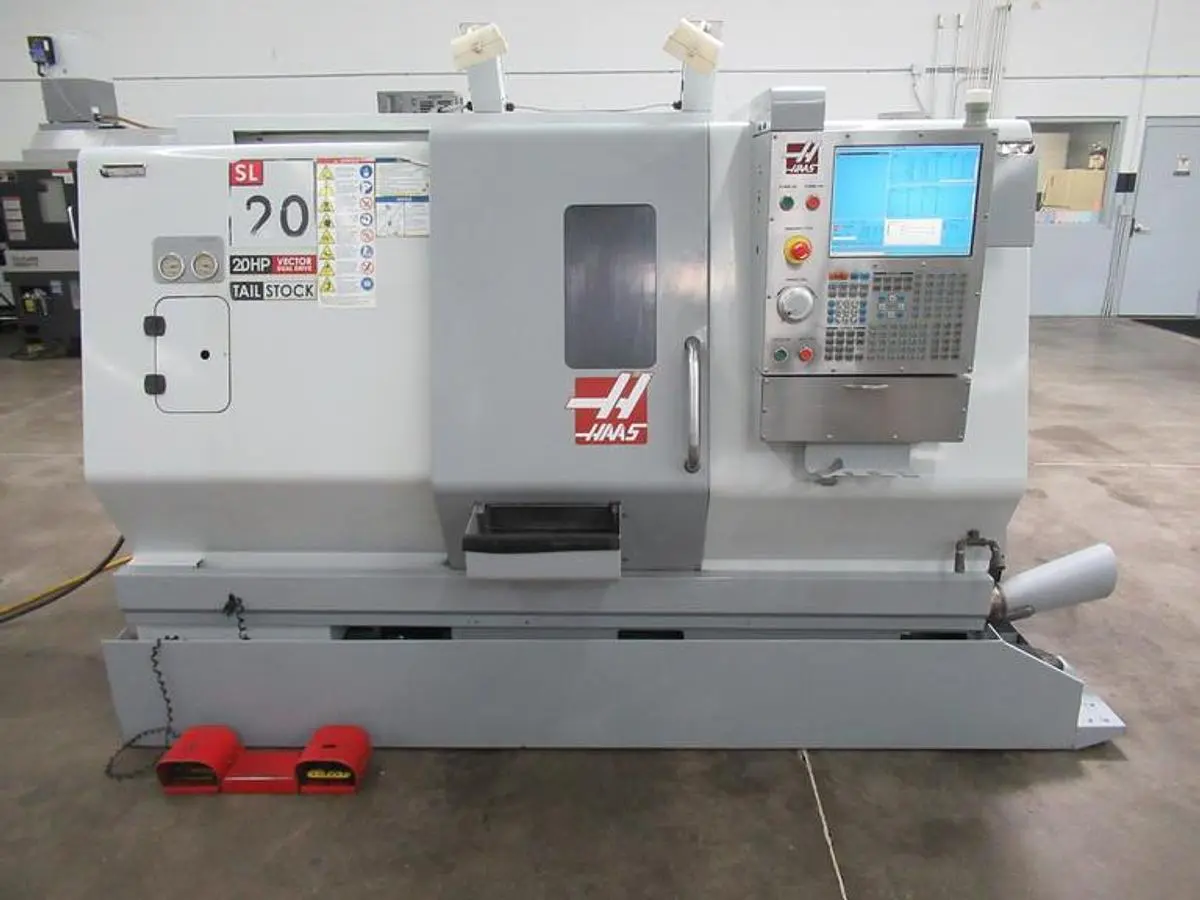

USED 2008 HAAS SL-20T

Programmable Hydraulic Tailstock
8.3" 3 Jaw Samcully Hydraulic Chuck
Auger Style Chip Conveyor
Parts Catcher
Tool Presetter
10 Station Bolt On Style Turret
Haas Coldfire II Processor
Haas Intuitive Programming System
Coolant System with Tank & Pump
High Intensity Lighting
USB Port Interface
RS232 Port Interface

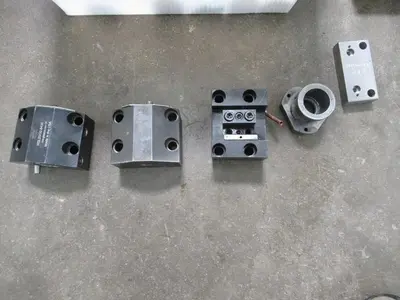

All Available Tooling
Foot Pedals for Chuck & Tailstock
Wired 208/230V Electrics

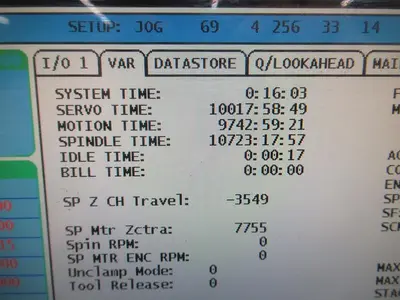

**Machine Motion Hours 9,742**
**Spindle Run Hours 10,723**

The 2008 Haas SL-20T CNC lathe is a reliable machine tool suitable for various applications, offered in good used condition. Equipped with an 8.3" 3-jaw hydraulic chuck, this lathe supports a maximum swing of 20" and a swing over cross slide of 10". The distance between centers is 24", and it allows an X-axis travel of 8.45" and a Z-axis travel of 20". With a spindle capable of speeds ranging from 0 to 4,000 RPM and a motor power of 20 HP, it ensures efficient and precise machining.

This model includes features such as a tool presetter, parts catcher, chip auger, and cold fire II processor, enhancing its functionality and ease of use. The machine supports a bar capacity of 2" and has a spindle bore of 3.0", along with a spindle nose of A2-6". The 10-station bolt turret allows versatile tooling options, and the tailstock features a taper of MT #4 with 20" travel, accommodating various workpiece sizes.

The Haas SL-20T measures 126.5" in length, 74" in width, and 72" in height, weighing approximately 9,000 lbs. Designed with Haas CNC control, it provides a user-friendly interface with rapid traverse rates of up to 710 IPM, making it a valuable addition to any workshop for efficient and productive machining operations.

Machine Control: Haas CNC Control
Chuck Size: 8.3" 3-Jaw Hydraulic
Maximum Swing: 20"
Maximum Swing Over Cross Slide: 10"
Distance Between Centers: 24"
X-Axis Travel: 8.45"
Z-Axis Travel: 20"
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.0" / 2"
Spindle Speeds: 0 - 4,000 RPM
Spindle Motor: 20 HP
Spindle Torque: 120 ft/lbs
Number of Turret Positions: 10 Station Bolt Turret
Rapid Traverse Rates: 710 IPM
Tailstock Taper / Travel: MT #4 / 20"
Machine Dimensions LxWxH: 126.5"x74"x72"
Machine Weight: 9,000 lbs
