USED 1995 WEBB 5VK

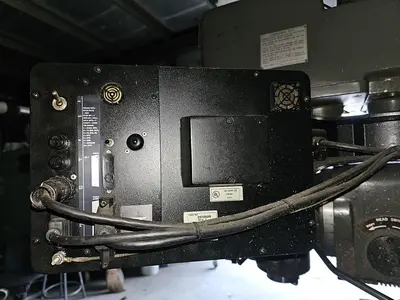

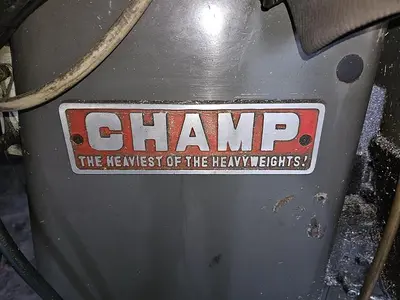

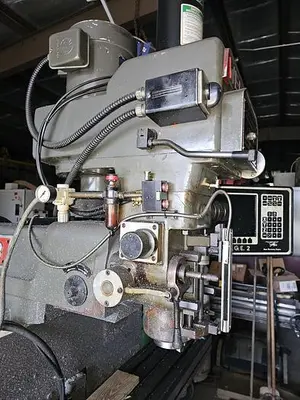

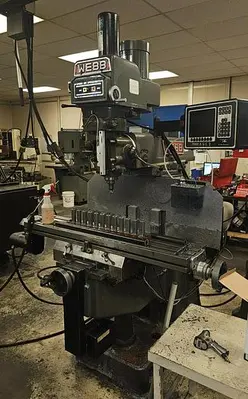

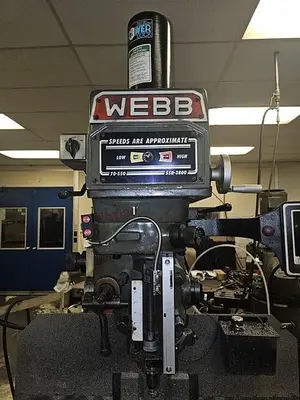

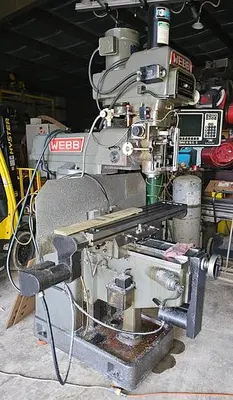

1995 WEBB 5VK 2-Axis CNC Knee MillHeavy-Duty Toolroom Mill with TRAK A.G.E. 2 ControlThis Webb 5VK (Serial #845686) is a high-performance, heavy-duty knee mill designed for precision toolroom work and small-batch production. Unlike standard 2 HP/R8 mills, the 5VK features a robust 5 HP spindle motor and a #40 Taper spindle, providing the rigidity and torque necessary for aggressive metal removal and larger tooling.Equipped with the intuitive Southwestern Industries TRAK A.G.E. 2 conversational control, this machine allows for seamless transitions between manual operation and full 2-axis CNC profiling, making it one of the most versatile machines for a job shop environment.Key SpecificationsModel: 5VK ChampYear of Manufacture: 1995Serial Number: 845686Spindle Motor: 5 HP (220V/440V, 3-Phase)Spindle Taper: NST #40 (NMTB 40)Spindle Speed: 60 – 3,800 RPM (Variable Speed)Table Size: 10" x 54" (Extended Workspace)Travels: 32" (X) x 16" (Y) x 19" (Z - Manual Knee)Quill Travel: 6" (Chrome Ground)Way Surfaces: Hardened & Ground (HRC 52) with Turcite-B coatingCNC Control & FeaturesTRAK A.G.E. 2 CNC: Powerful 2-axis conversational control with "Do One" routines, canned cycles (pockets, bolt holes, profiles), and DXF file compatibility.Precision Positioning: Zero-backlash precision ground ballscrews on X and Y axes.Rigid Construction: Certified Meehanite casting with square ways on the knee and saddle for maximum vibration dampening.Lubrication: Automatic centralized lubrication system with metered check valves.Included Workholding & Accessories(2) Kurt 6" Precision Vises: High-quality matched workholding for long workpieces or dual-setup efficiency.Power Drawbar: Fast, pneumatic tool changes.Work Lamp: Integrated industrial-grade halogen lighting.Manuals: Includes original operator and programming documentation.Condition Note: Machine has been well-maintained and was recently removed from a light-service environment. Under power and ready for inspection.

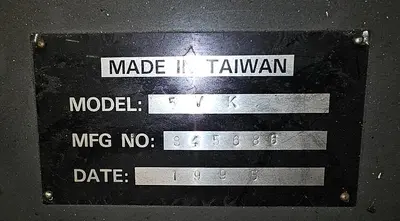

S/N: 845686
Table Travel (X-axis): 32″
Saddle Travel (Y-axis): 16″
Quill Travel: 6″

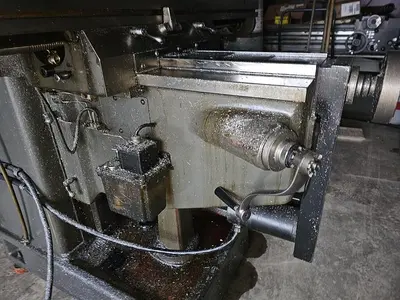

Knee Travel (Z-axis manual): 19″
Ram Travel: 24″
Throat Distance (min.): 4 1/4″
Throat Distance (max.): 28 1/4″
Max. Weight of Workpiece: 750 lbs.

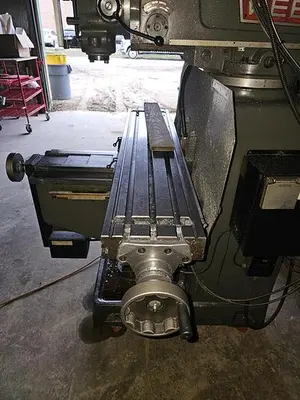

Overall Sizes: 10 x 54″

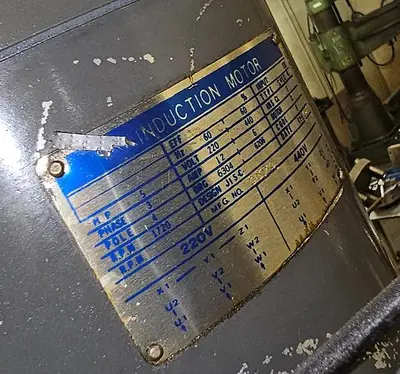

* Spindle Motor: 5 HP (220V/440V, 3-Phase)
* Spindle Taper: NST #40 (NMTB 40)

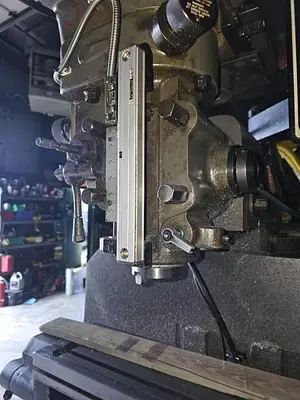

* Quill Travel: 6" (Chrome Ground)
* Power Drawbar: Fast, pneumatic tool changes.
* Work Lamp: Integrated industrial-grade halogen lighting.
