USED G&L 60'' DIAMETER ROTARY TABLE

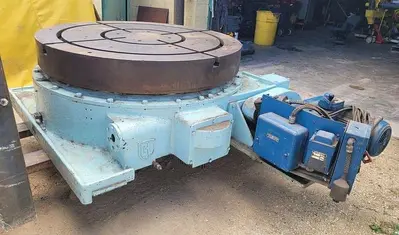

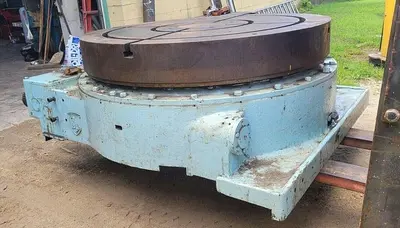

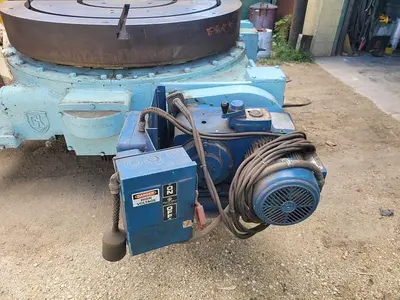

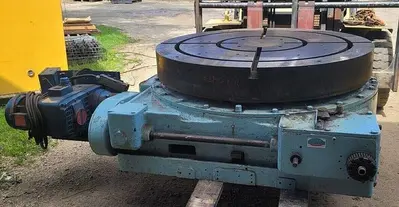

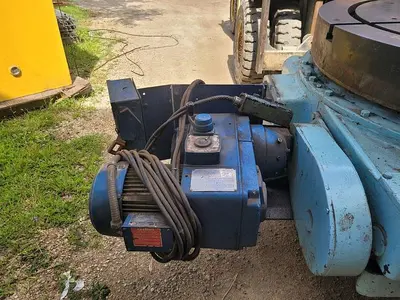

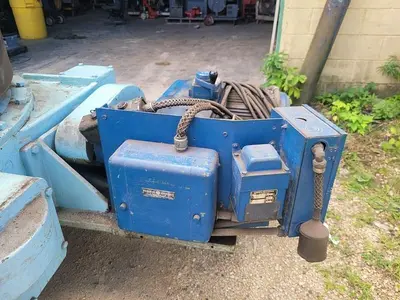

60" Giddings & Lewis (G&L) Heavy-Duty Power Rotary TableManufacturer: Giddings & LewisTable Diameter: 60" (Circular Platen)Estimated Capacity: 30,000 Lbs.OverviewThis Giddings & Lewis 60-inch Power Rotary Table is an industrial-grade workholding solution designed for large-scale machining operations on Horizontal Boring Mills (HBM) and floor-type milling machines. Known for their extreme rigidity and "overbuilt" cast-iron construction, G&L tables provide the precision necessary for heavy boring, tapping, and multi-side machining of massive workpieces.Key Performance FeaturesHydrostatic/Air-Lift System: Equipped with a lift system that reduces friction during rotation, allowing for smooth, effortless positioning even when loaded to maximum capacity.Precision Indexing: Features a 360-degree graduated scale (typically in 1/2-degree increments) and 90-degree positive-stop shot pins for repeatable, high-accuracy alignment.Power Bi-Directional Rotation: Driven by a robust electric motor and gearbox assembly, allowing for both clockwise and counter-clockwise rotation under power.Heavy-Duty Clamping: Features multi-point air/hydraulic clamping to the base, ensuring the table remains rock-solid during heavy interrupted cuts or high-torque boring.Technical SpecificationsPlaten Diameter: 60"Weight Capacity~30,000 Lbs (Subject to verification)Height (Floor to Top) Approx. 16" – 20"Number of T-Slots: 6 to 11 (Pattern dependent)Drive Motor: 3 HP / 5 HPShot Pin Positions: 0°, 90°, 180°, 270°Approximate Weight: 9,300 – 12,500 LbsFootprint: Approx. 72" x 80"Condition & QualityCast Iron Base: Heavily ribbed, high-tensile casting to dampen vibration.Way Surfaces: Precision ground and scraped for maximum flatness and longevity.Drive Train: Integrated gearbox with Varidrive or multi-speed motor for variable positioning speeds.

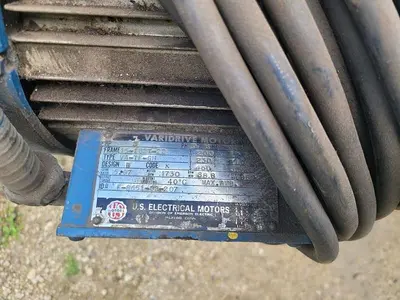

Operation: Electric
Approximate Weight: 9,300 – 12,500 Lbs
Footprint: Approx. 72" x 80"

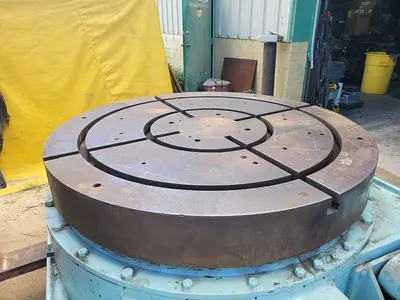

Table Diameter: 60" (Circular Platen)
Estimated Capacity: 30,000 Lbs.

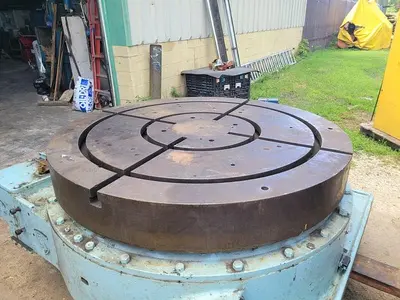

Platen Diameter: 60"
Shot Pin Positions: 0°, 90°, 180°, 270°
