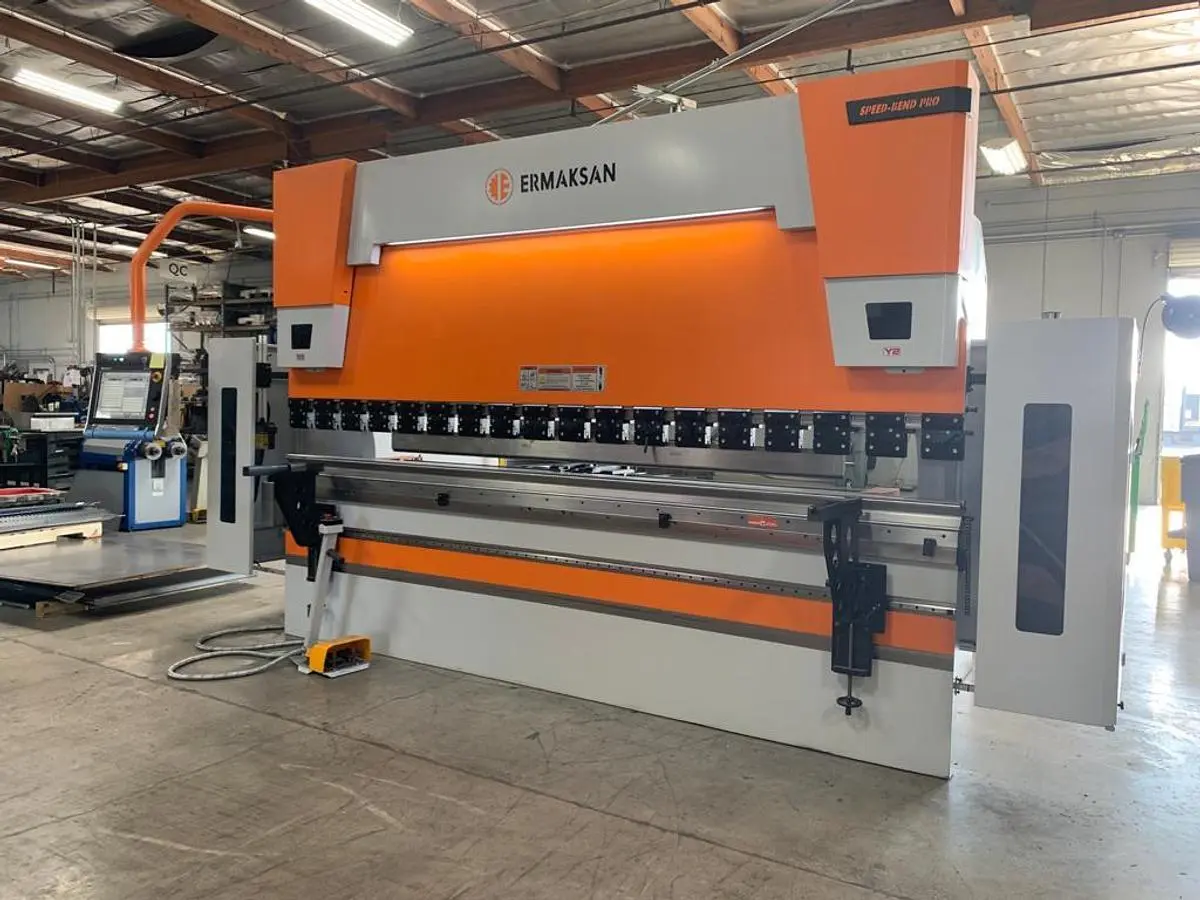

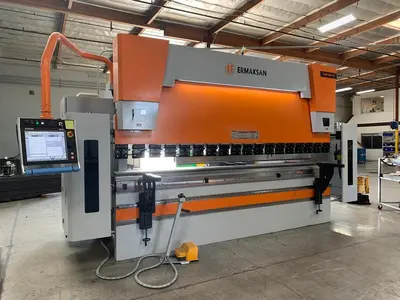

NEW ERMAKSAN PBF 4270-220

Year: 2026
Capacity: 242 Tons
Overall Bending Length: 168"
Distance Between Housings: 148.8"
Y Rapid Speed: 7.09" /sec
Y Working Speed: 0.39" /sec
Y Return Speed: 6.3" /sec
X Axis Travel: 31.5
X Axis Speed: 19.7
R Axis Travel: 9.8
R Axis Speed: 13.8
Stroke: 10.8"
Throat: 16.1"
Daylight: 21.7
Dimensions (approx): 247"x89"x118"H
Weight (approx.): 30,209 lbs.

Equipped With Standard Options:
Delem 58T Touch Screen Control
Y1,Y2,X,R Axes
Quick Release Universal Punch Holders
Tooling Package w/4-Way Bottom Die
Foot Pedal
CNC Crowning
AKAS Laser Safety Guard

Available Upgrade:
Riser Block for U.S. Dies @ Additional Cost
Bottom Tool with Two Hardened Rods
Dual Voltage (230-460V, 60Hz, 3Ph)
