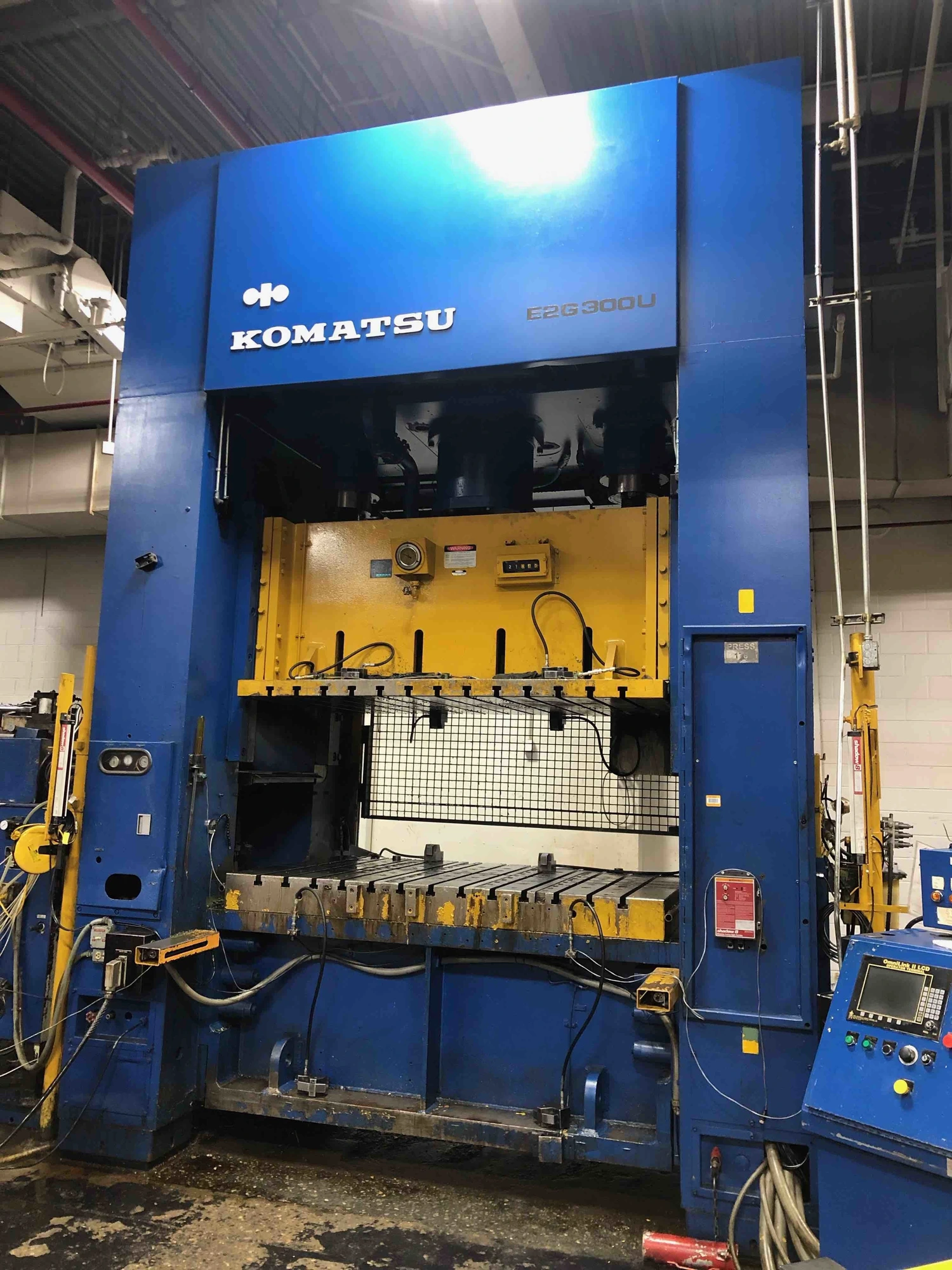

USED 1988 KOMATSU #E2G-300UD
Overview
Description
1988 Used 300 Ton Komatsu #E2G-300UD Straight Side Double Crank Press available. Features include a 300T capacity, 14.2” stroke, and variable speeds from 12-40 spm. Equipped with controls and safety features. Ideal for robust production needs.
Specifications
| Ton | 300 T | |
|---|---|---|
| Bed L-R | 86.5 in | |
| Bed F-B | 55.2 in | |
| Stroke | 14.2 in | |
| Shut Height | 28.3 in | |
| Min Speed | 12 spm | 12 strokes/min. |
| Max Speed | 40 spm | 40 strokes/min. |
| Windows | 34 in |
Serial Number: 10092
Manufactured: 1988
Capacity: 300 Tons
Stroke: 14.2”
Die Height: 28.3”
Slide Adjustment: 10.2”
Bed Area: 86.5” L-R x 55.2” F-B
Bolster Plate: 7” Thick T-Slotted
Slide Area: 86.2” L-R x 55.2” F-B T-Slotted
Speeds: 12 - 40 Strokes Per Minute (Variable)
Windows: 36” x 40” high
Equipped With:
Komatsu Press Controls Console
Omnilink II LCD Terminal
Hydraulic Overload
Shadow 8 Light Guards
Operator Palm T-Stand
Flush Floor Design
Approximate Overall Dimensions: 12’ L-R x 7’ F-B @ base (12’6” @ top) x 18’6” H
Estimated Shipping Weight: 125,000 LBS
