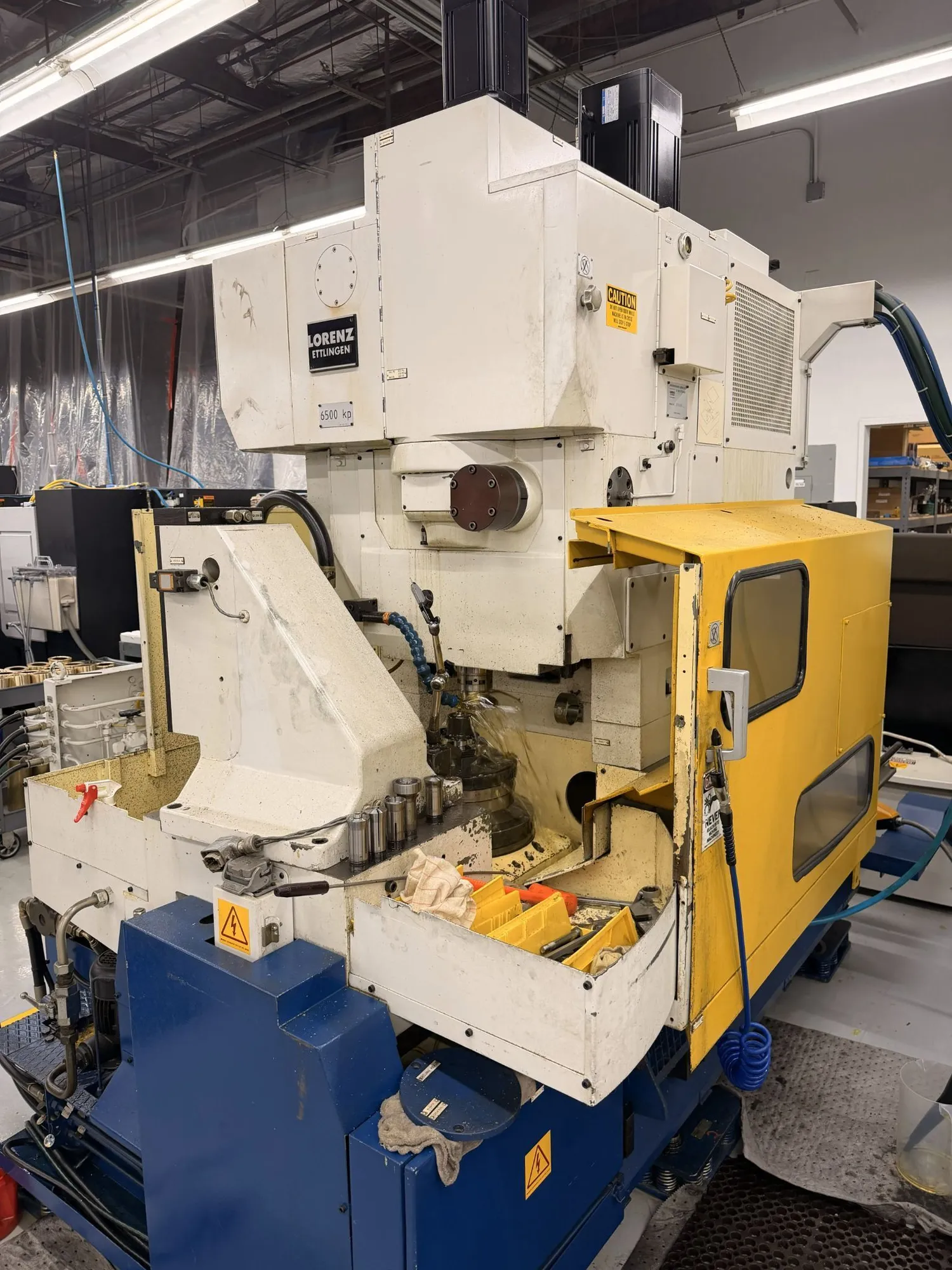

USED LORENZ LS-152

Lorenz CNC Gear shaper
Model LS-152 s/n 06-14 458
4 axis cnc
remanufactured and rebuilt

this machine can be inspected in customers shop floor
under power and running parts . the machine was remanufactured
several years ago but remains in stellar condition
SPECIFICATIONS:
Max. Workpiece Internal Diameter 11"
Max. Workpiece External Diameter 6"
Max. Face Width (Stroke) 1.7"
Max. Vertical Positioning of Cutter Slide 2.6"
Max. Column Movement (In and Out) 7"
Module 5
Number of Teeth 5-200
MACHINE IS EQUIPPED WITH THE FOLLOWING
* NUM 4-Axis CNC Control
- Axes Controls:
C - Tool
D - Workpiece
X - Column
Z - Tool Slide
* 4" Riser Block (TBD)
* Cutter Positioning
* Cutter Elevation
* Chip Conveyor
* Tailstock

machine can be inspected in customers facility
contact us to set up an under power inspection
call rich piselli 704 609-0766 or email him at
[email protected]

we look forward to hearing from you , so request a
quote today

Rich piselli
