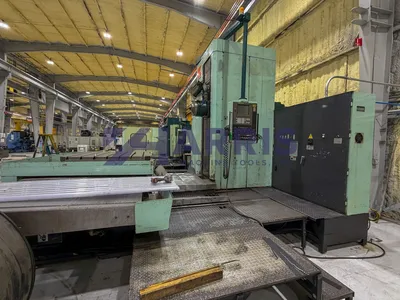

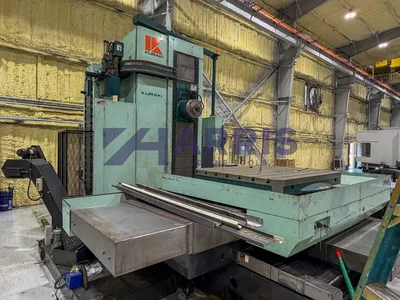

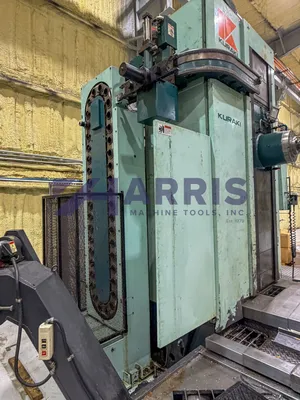

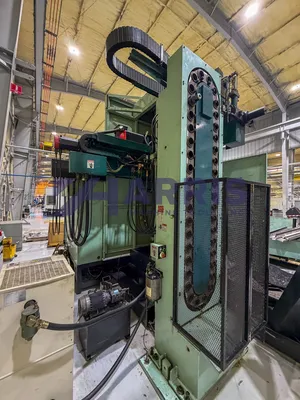

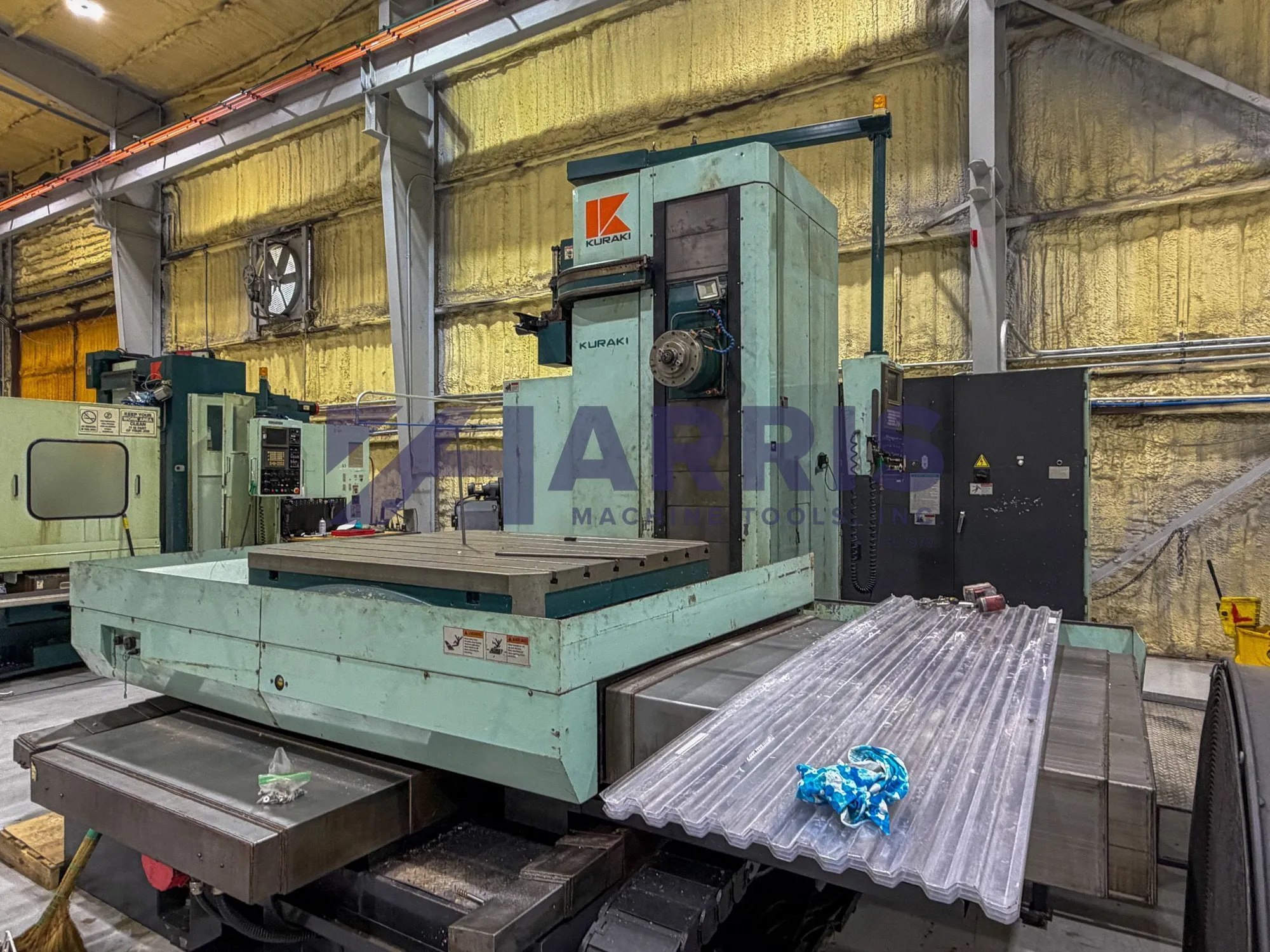

KURAKI KBT-11WA, used manual horizontal boring mill. Features: 4.33" spindle, 78.74" X-axis, 59.06" Y-axis, 19.69" spindle travel, and 30.0 power. Ideal for precision engineering tasks.
| Spindle Size | 4.33" | 109.98 mm |
| Table Size-L | 55.12" | 1,400 mm |
| Table Size-W | 62.99" | 1,599.9 mm |
| Table Weight Capacity | 14300 | 14300 |
| X-Horiz Tvl of Table | 78.74" | 2,000 mm |
| Y-Vert Tvl of Head | 59.06" | 1,500.1 mm |
| Z-Axis Travel | 57.0 | 57.0 |
| Spindle Tvl. | 19.69" | 500.13 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
TRAVELS: X 79.74" - Y 59.06" - Z 57.09" - W 19.69"
TABLE: 55.12" x 62.99" with 14,300 lbs. Load Capacity
SPINDLE SPEEDS: 5 ~ 3000 rpm ( 3 Speed Geared Head)
TOOL CHANGER: 40 tools with 50 Spindle Taper
MAIN MOTOR: AC 30 / 25 HP (30min/cont.)
