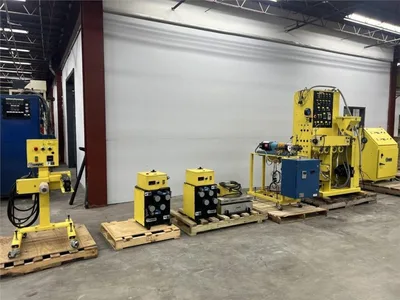

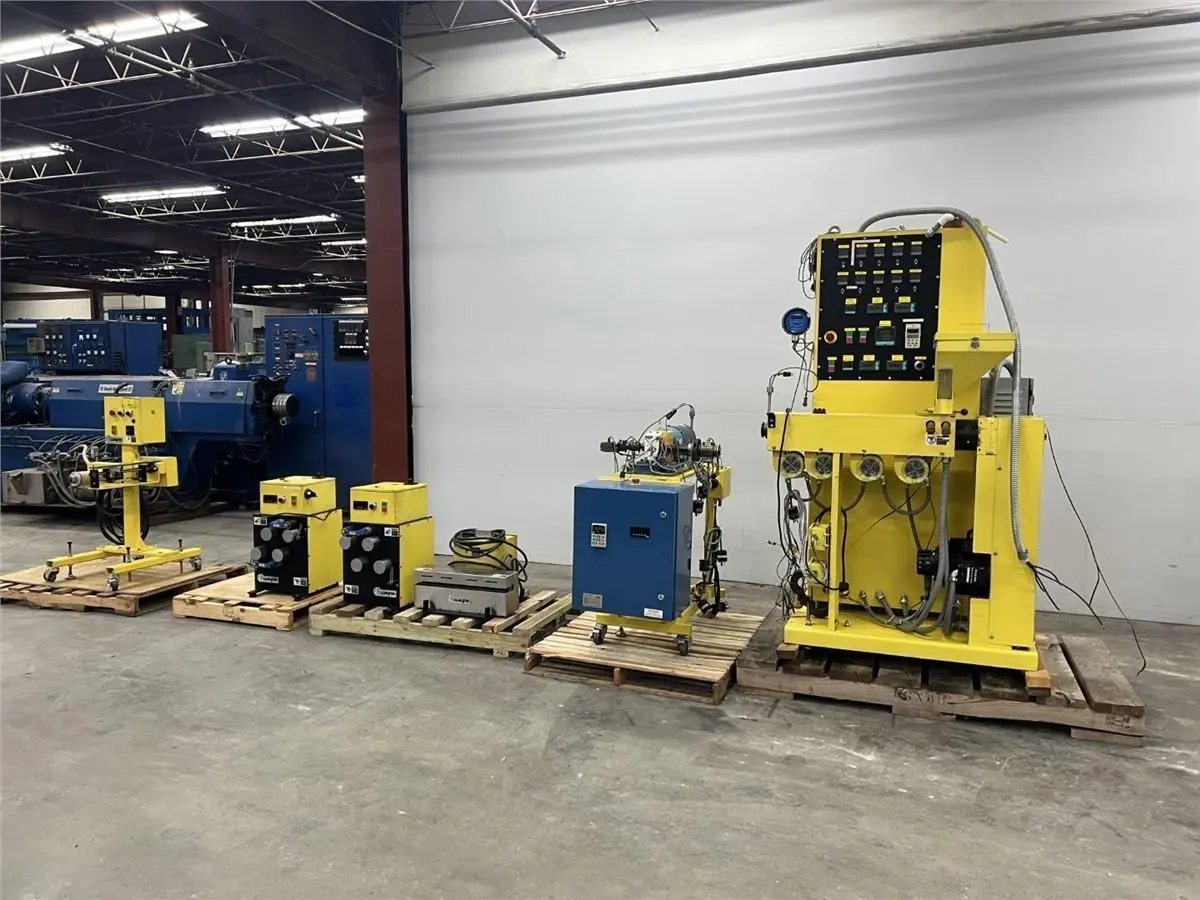

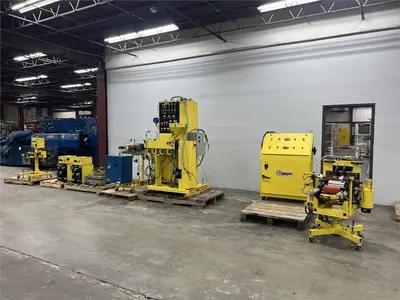

Wayne Lab Monofilament Extrusion Line With Auxiliary Cast Roll Station

Wayne Lab Monofilament Extrusion Line With Auxiliary Cast Roll Station
– 1″ Wayne Extruder, 30:1 L/D Ratio, Vented Barrel, Air- Cooled Barrel, 3 HP AC
– Motor With Belt Drive, Controlled With WEG Vector Duty Drive, 4 Barrel Zones,
– Motor With Belt Drive, Controlled With WEG Vector Duty Drive, 4 Barrel Zones,
– Air Cooled, 6 Die Zones, With Melt Temp, Extruder RPM, And Motor Load, Has
– Air Cooled, 6 Die Zones, With Melt Temp, Extruder RPM, And Motor Load, Has
– Gefran Pressure Transducer With Readout, Includes Screw.
– Gefran Pressure Transducer With Readout, Includes Screw.
– 42″ Extruder Centerline, Clamp For Extruder Die
– 42″ Extruder Centerline, Clamp For Extruder Die
– Single Filament Die, Zenith Melt Pump, Model 60-20000 With 1/2 HP AC Motor
– Single Filament Die, Zenith Melt Pump, Model 60-20000 With 1/2 HP AC Motor
– 22″ Long Heaterbox For Annealing Monofilament
– 22″ Long Heaterbox For Annealing Monofilament
– (2) Godet Stations, 1-30MPM (High Speed), 2-12 MPM (Low Speed)
– (2) Godet Stations, 1-30MPM (High Speed), 2-12 MPM (Low Speed)
– Comes With Traversing Windup Station, 1/2Hp (230volt) With Torque Control
– Comes With Traversing Windup Station, 1/2Hp (230volt) With Torque Control
– Also Included:
– Also Included:
Individual 8″ Wide Chill Roll Cast Pull Rubber Nip Roll
Individual 8″ Wide Chill Roll Cast Pull Rubber Nip Roll
Dual Slitter Station, Rubber Pull Rolls, AC Drive
Dual Slitter Station, Rubber Pull Rolls, AC Drive
