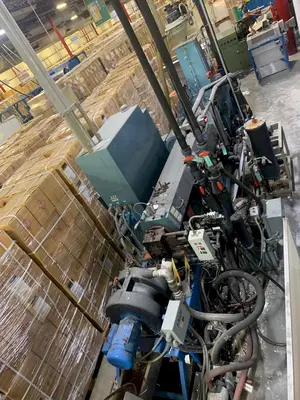

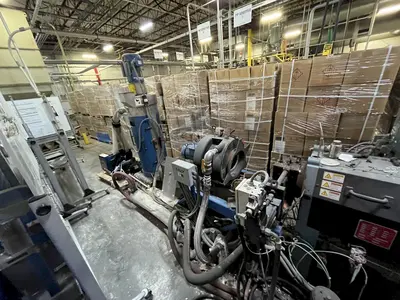

Davis Standard/Xaloy  3.5″ Pelletizing Line, 125 HP –  2008

Davis Standard/Xaloy  3.5″ Pelletizing Line, 125 HP –  2008

Model: 35IN35 / 3.5in

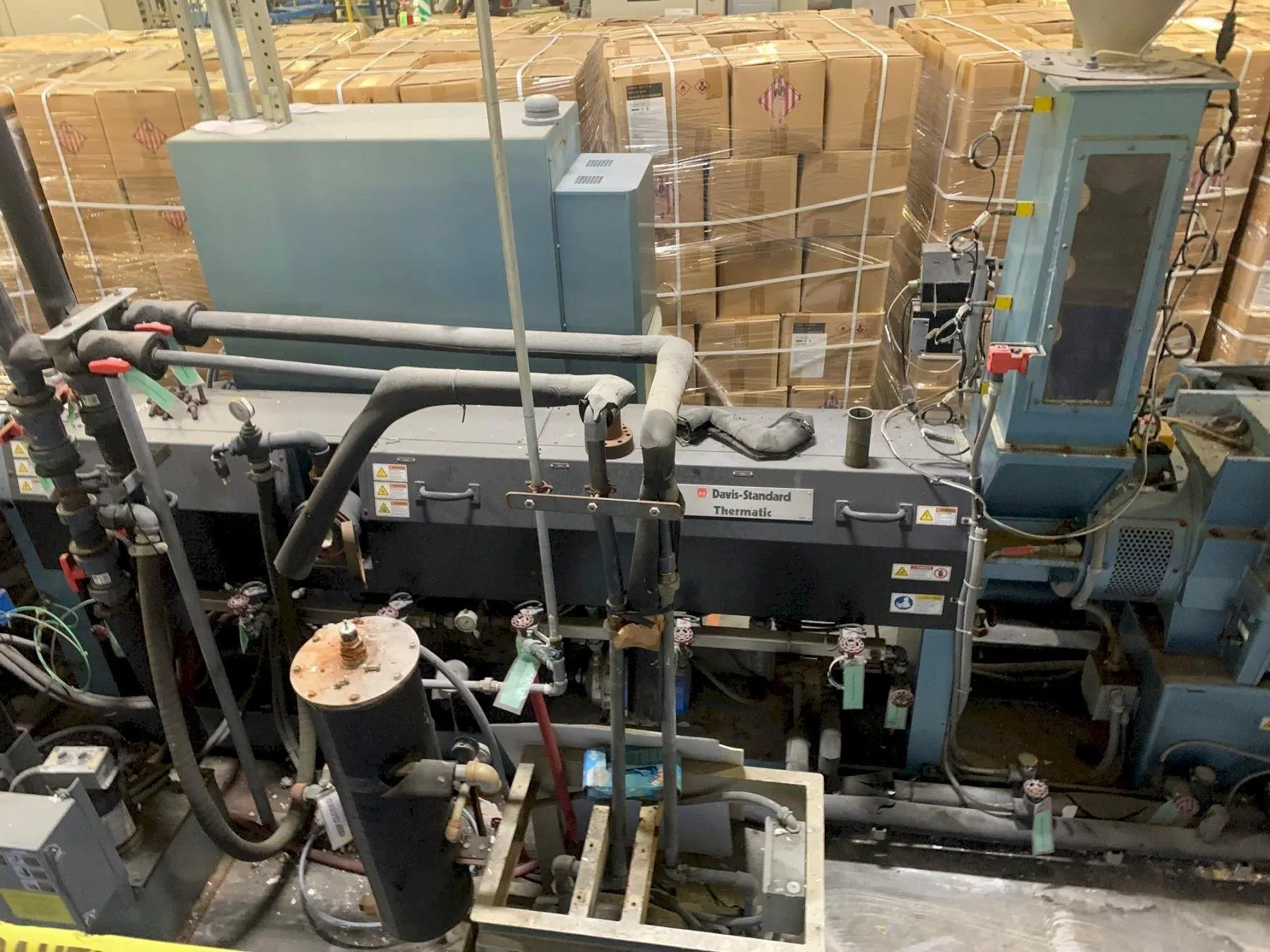

3.5″ Davis Standard Thermatic Single Screw Extruder

34:1 L/D Vented Barrel

Vent Located 78″ from Feed Throat

6 Water Cooled Barrel Zones

Oversized 14″ x 10″ Feed Throat

Water Cooled Feed Throat

Screw Cooling

257 HP Capacity with 1.25 Service Factor

17.39 Gearbox Ratio, Gearbox

125 HP Baldor AC Inverter Duty Motor, 1790 RPM

3.5″ Xaloy Slide Plate Screen Changer

Xaloy WRP-12i Water Ring Pelletizer with Heat Exchanger

6 Barrel Zone Temperature Controllers

4 Die Zones

Extruder & Pelletizer Speed Pods

Dynisco Pressure Gauge
Footprint: 23′ x 6
