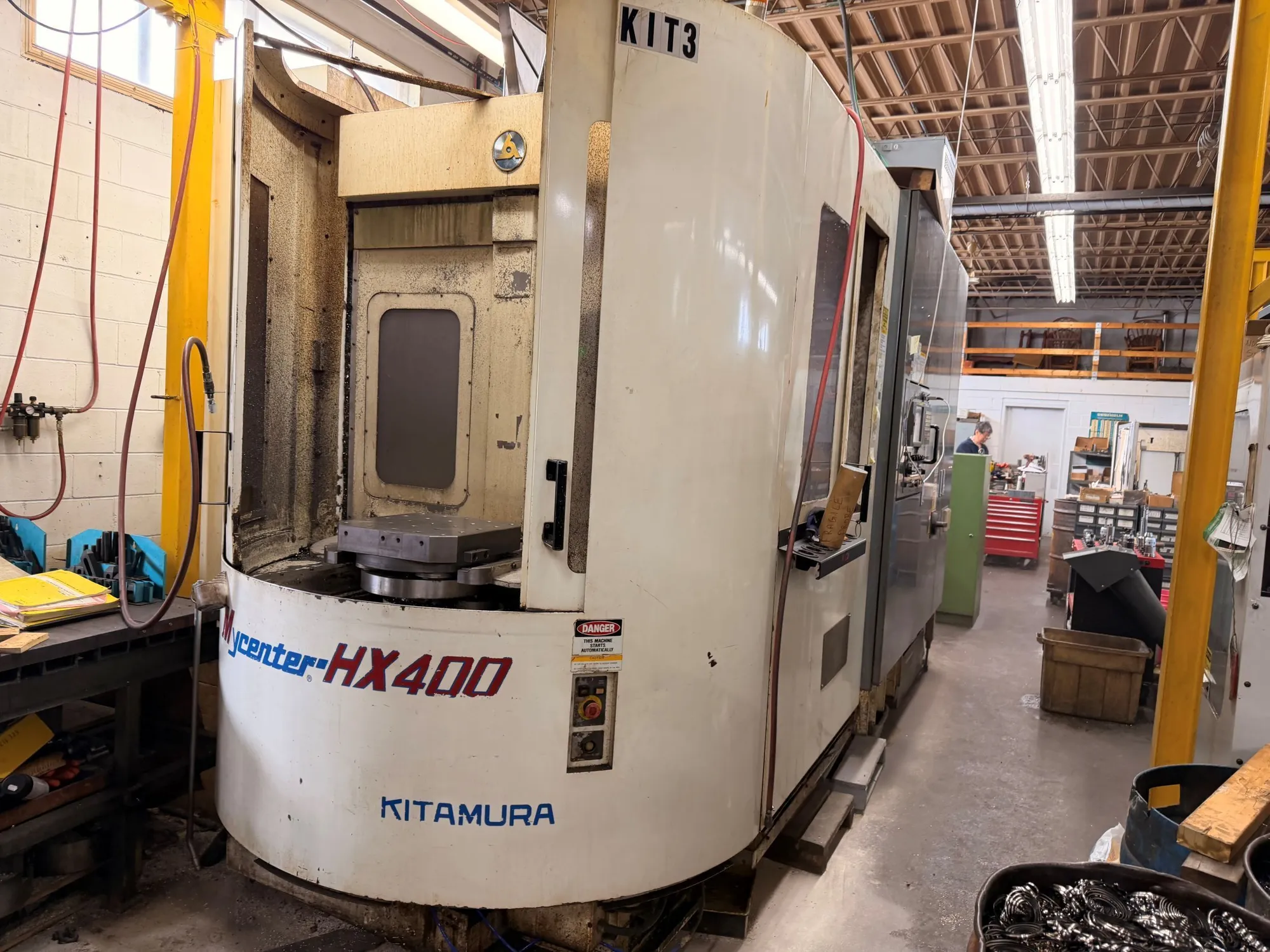

USED 2001 KITAMURA MYCENTER HX400
Overview
Description
KITAMURA Horizontal Machining Center
Model: Mycenter HX 400
Year: 2001
Control: FANUC Series 16i-M
Specifications
| X | 600 mm | 23.622" |
|---|---|---|
| Y | 610 mm | 24.016" |
| Z | 560 mm | 22.047" |
| RPM | 13,000 RPM | 13,000 RPM |
| # Axis | 50 | 50 |
| Control | CNC (Fanuc Series i CNC Control) | CNC (Fanuc Series i CNC Control) |
Travel:
X axis: 600 mm
Y axis: 610 mm
Z axis : 560 mm
Distance from Table to Spindle Nose ; 150-710 mm
Distance from Table to Spindle Center: 50-660 mm
Spindle Taper: CAT-40
Max Speed of spindle: 13000 RPM
ATC
Tool Storage Capacity :50 Tools
Max Dia of tools : 95 mm
Max weight of tools: 10 Kg
Power supply
AC 200/220V, # Phase 50KVA
