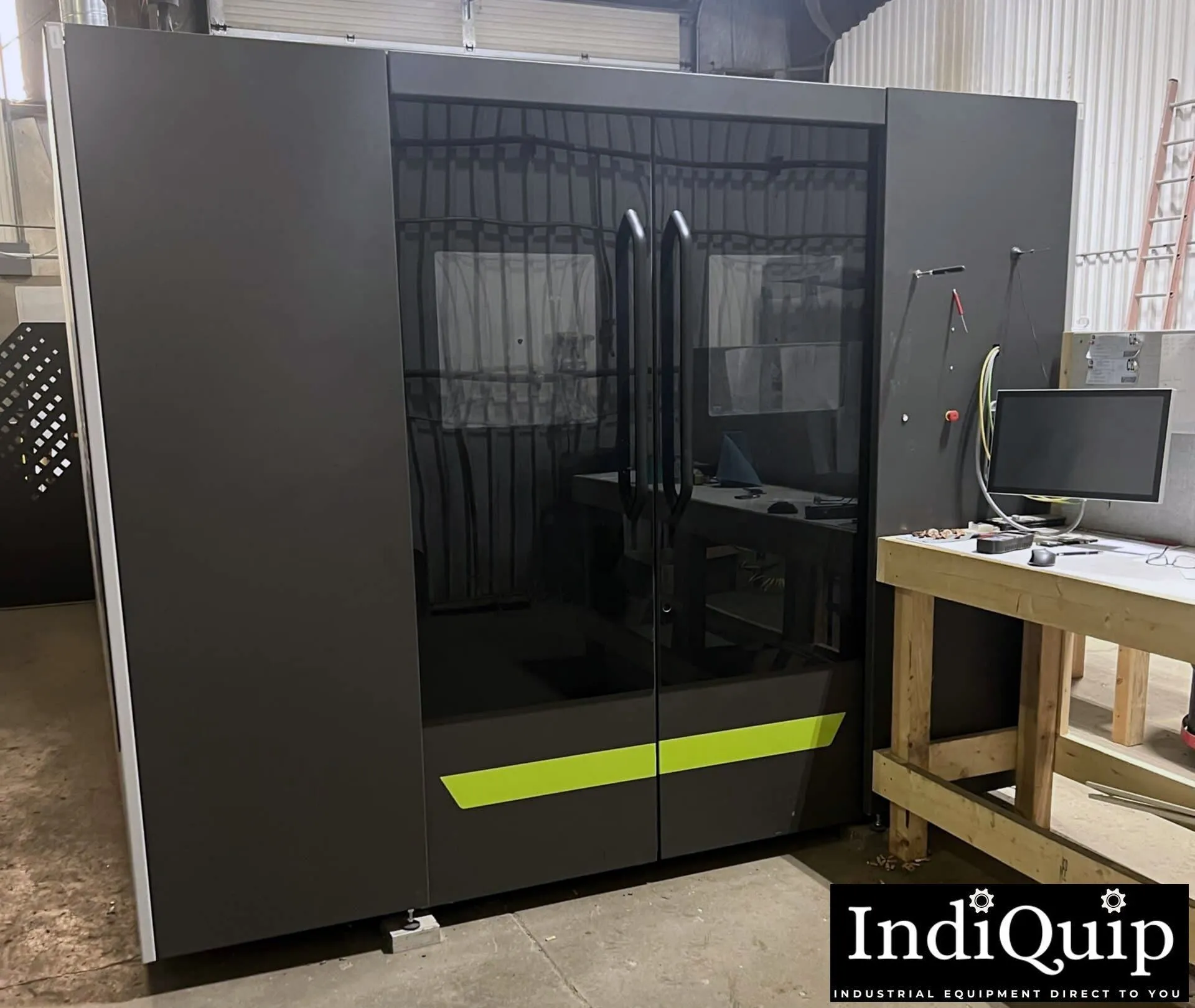

USED 2021 BYSTRONIC DNE LC3 3015
Overview
Description
2021 Bystronic DNE LC3 3015 fiber laser with 6,000W power, 5′ x 10′ sheet capacity, and high-speed linear drives. Cuts up to 0.750″ steel, stainless, and aluminum with precision positioning, fast table changeover, and fume extraction.
Specifications
- Power: 6000W
- Laser Type: Fiber
- Sheet Size: 5′ x 10′
- Max Positioning Speed X/Y: 3937 IPM
- Max Simultaneous Positioning Speed: 5511 IPM
- Bilateral Repeatability of Positioning of One Axis R (Following ISO 230-2:2014(E)): ±0.002″
- Bilateral Repeatability of Positioning of One Axis M (Following ISO 230-2:2014(E)): ±0.004″
- Edge Detection Accuracy: ±0.019″
- Max Weight of Workpiece: 1,984 Lbs
- Table Changeover Time: 24 s
- Polarization: Unpolarized
- Wavelength: 1 µm
- Pulse Frequency: 1 – 2500HZ
- Maximum Sheet Thicknesses:
- Steel: 0.750″
- Stainless Steel: 0.750″
- Aluminum: 0.750″
- Brass: 0.375″
- Copper: 0.375″ Total Electrical Consumption of System: 29kW
Equipped With

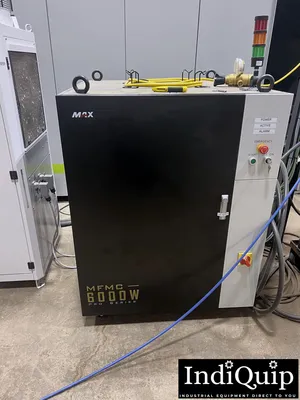

Max Photonics MFMC 6000W Pro Series Power Source

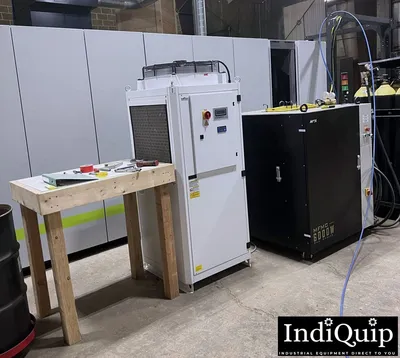

Donaldson Torit Fume Extraction System
