25" ARTER “B-24” HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER - 25" Electro-Magnetic Chuck - 8" Height Under Wheel - 10 HP Spindle Drive Motor - 7.5 HP Hydraulic Unit
| Chuck Size | 25" | 635 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Swing | 30" | 762 mm |
| Under Wheel | 8" | 203.2 mm |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 20" | 508 mm |

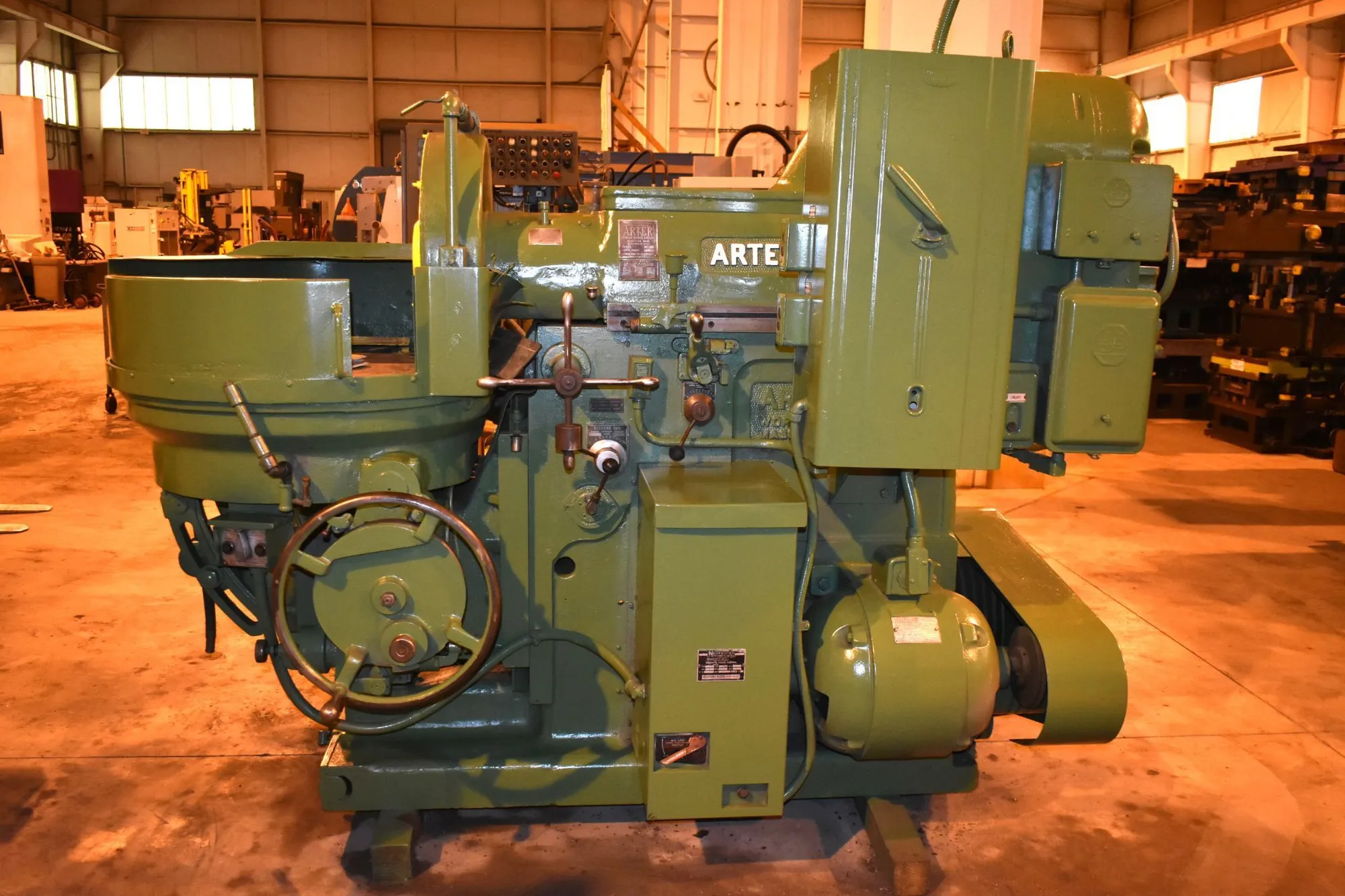

25" ARTER HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 2921, Model B24
EQUIPPED WITH:
Horizontal-Spindle Machine Design
25" Diameter Electro-Magnetic Chuck

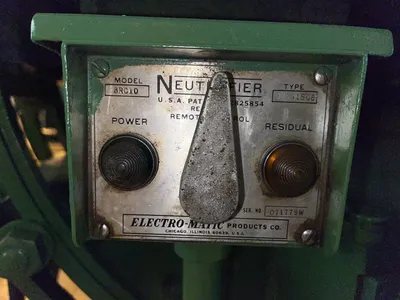

w/Rectifier & Neutrol
Ram-Mounted Grinding Motor Drive
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 25"
Swing With-in Coolant Guards 30"
Grinding Height Capacity w/Full Wheel 8"
Grinding Wheel Diameter, Standard 20"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 12"
Convex Table Angle Degrees, Maximum 10-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Grinding Wheel Speeds, Maximum 950 RPM
Spindle Motor, Horsepower/RPM 10 HP/1750 RPM
Hydraulic Motor, Horsepower/RPM 7.5 HP/1150 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 8'0" x 7'3"
Weight, Approximately 9500 LBS
F.O.B. OUR WAREHOUSE
