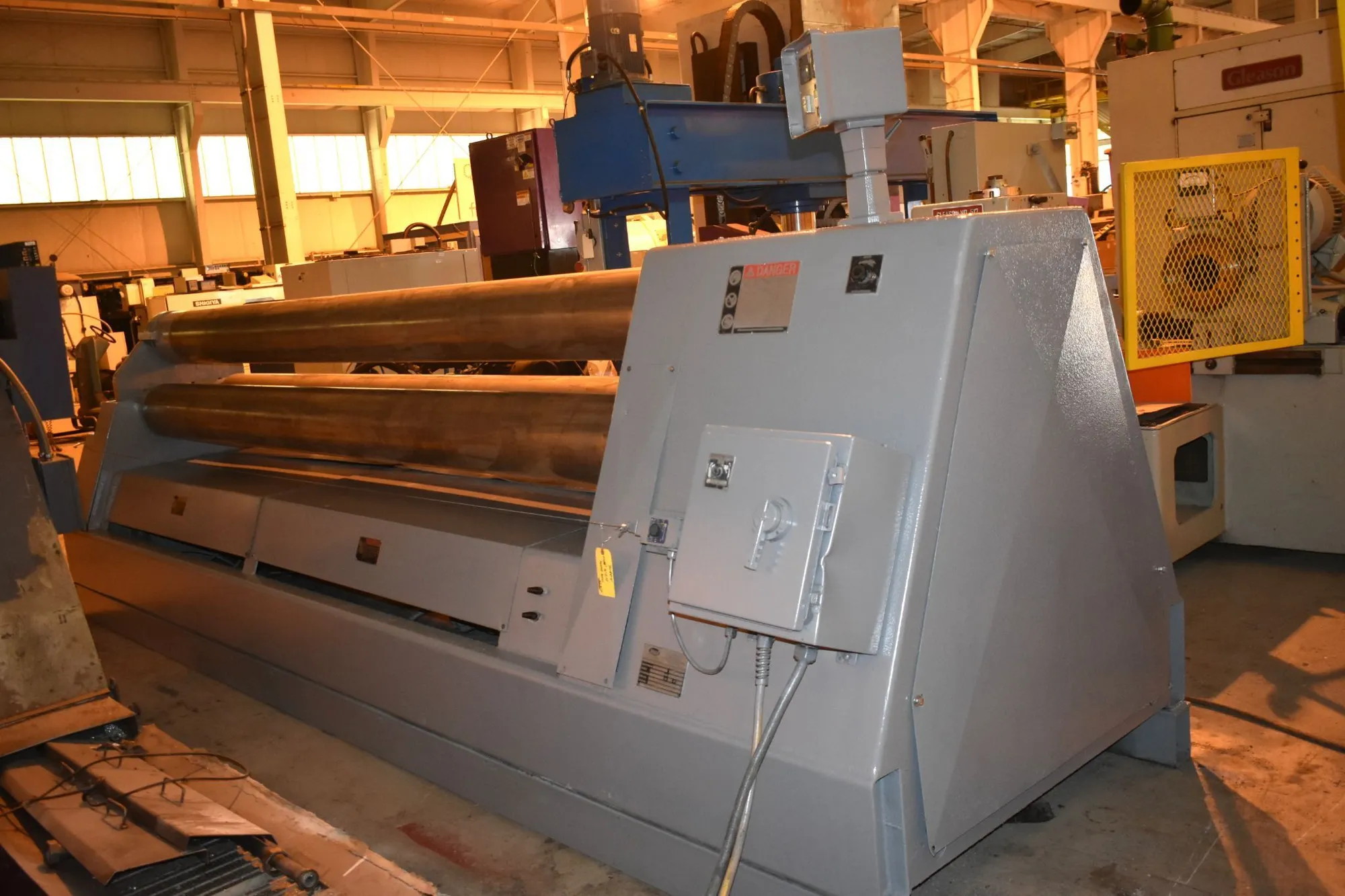

12’ X 7/16” WDM “100-11-12” 3-ROLL HYDRAULIC PINCH PYRAMID PLATE BENDING ROLL - Hydraulic Drop End - Pendant Control - Roll Position Indicator - 0 to 22 FPM Roll Speed - 15 HP Motor
| Length of Rolls | 12' | 3.7 m |
| (Init/Dbl Pinch or Pyramid) | 'PYRAMID' | 'PYRAMID' |
| Max Thickness | 0.44" | 11.176 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 15 hp | 11.2 kW |
| Roll Diameter | 11" | 279.4 mm |
| Dimensions | 210" x 55" x 54" | 210" x 55" x 54" |
| Weight | 26500 LBS | 26500 LBS |
12’ x 7/16” WMD 3-ROLL HYDRAULIC PYRAMID PINCH PLATE BENDING ROLL
Serial No 60428-98, Model 100-11-12
EQUIPPED WITH:
Hydraulic Drop End
Hydraulic Driven Rolls Through Planetary
Type Speed Reducer
Pendant Control - Roll Position Indicator
No Pit Required
CATALOG SPECIFICATIONS:
Bending Capacity, Rated 12’ x 7/16”
Top Roll Diameter 11”
Bottom Roll Diameters 11”
Roll Speed Infinitely Variable, Range 0 to 22 FPM
Motor Horsepower 15 HP
Overall Dimensions, L X W 210” X 55”
Overall Height 54”
Weight, Approximately 26500 LBS
F.O.B. OUR WAREHOUSE
