Control: Fanuc System R-30IA MATE
Payload: 5kg (11 LBS)
H-Reach: 892mm (35")
Repeatability: ±0.03mm (.001")
Robot Mass: 29kg (64 LBS)
Structure: Articulated
Mounting: Floor, ceiling, angle, and wall
Robot Motion Speed
J1 270 °/s (4.71 rad/s)
J2 270 °/s (4.71 rad/s)
J3 270 °/s (4.71 rad/s)
J4 450 °/s (7.85 rad/s)
J5 450 °/s (7.85 rad/s)
J6 720 °/s (12.57 rad/s)
Robot Motion Range
J1 ±340°
J2 ±230°
J3 ±373°
J4 ±380°
J5 ±240°
J6 ±720°

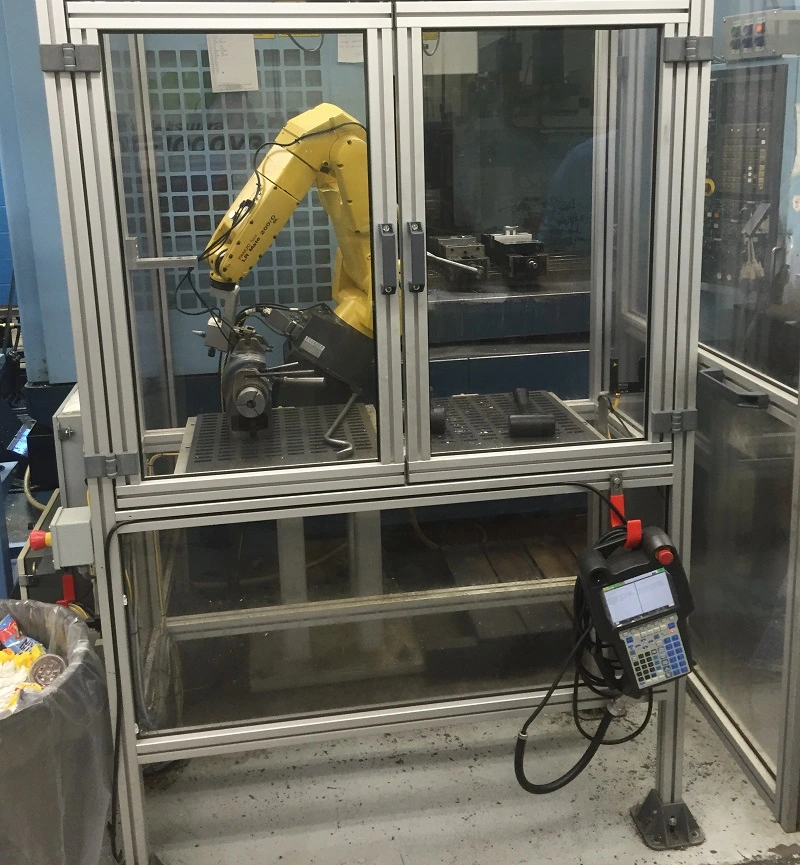

Work Cage
Misc Work Holding Equipment
