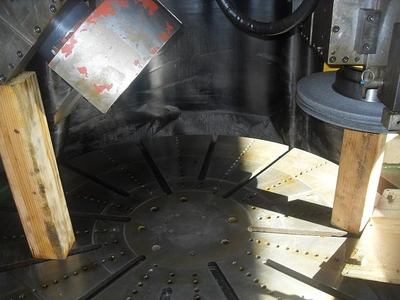

Rotary Table Size: 48"
Maximum Swing: 60"
Work Clearance, Approx: 20"
Max. Distance Centerline Of Grinding Spindle from Centerline of Table: 30"
Hydraulic Actuated Vertical Stroke: 12"
Total Vertical Range: 16"
Feed Range, Vertical Stroke: 0-96 IPM
Grinding Spindle Setting, Either Side Of Vertical: 0-90 Deg.
Table Speed, Variable: 5-35 RPM
Spindle Drive: 7.5 HP
Approximate Machine Weight: 27,000 lbs
Approximate Machine Dimensions: 150" LR x 132" FB x 100"H

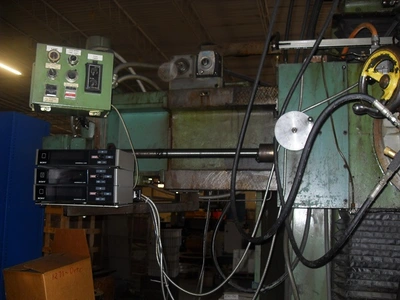

Sony DROs

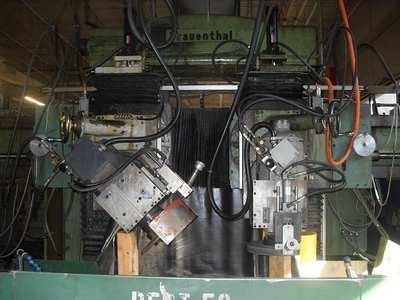

(2) Direct Connected Grinding Spindles
(2) Hydraulic Actuated Compound Cross Slides
