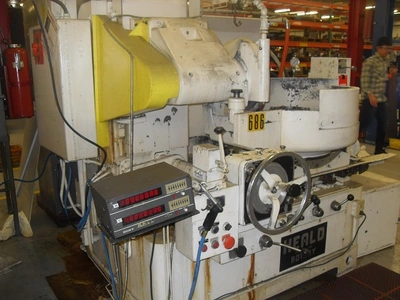

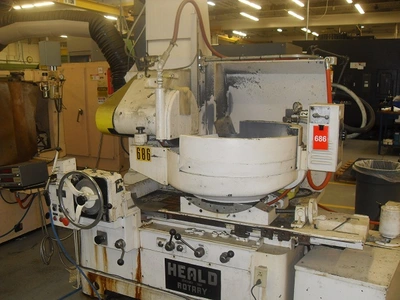

USED 1968 HEALD 361-24

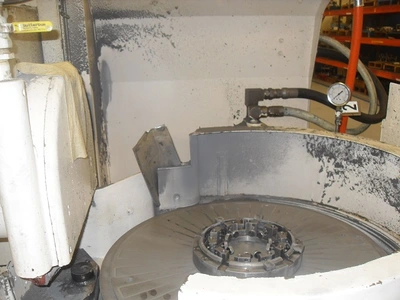

Magnetic Chuck Diameter: 24"
Maximum Swing: 28"
Std Wheel Size: 14" x 1.5" x 5"
Minimum Wheel Diameter: 9"
Distance Between Chuck & Wheel: 4.5" - 17.5"
Max Angle Convex/Concave: 17 DEG / 10 DEG
Table Travel: 16"
Grinding Stroke: 12"
Chuck Speeds: 38-100 RPM
Wheel Speed: 1,750 RPM
Chuck Motor: 15 HP
Wheel Motor: 15 HP
Machine Dimensions: 115"L x 79"W
Machine Weight: 12,000 LBS
