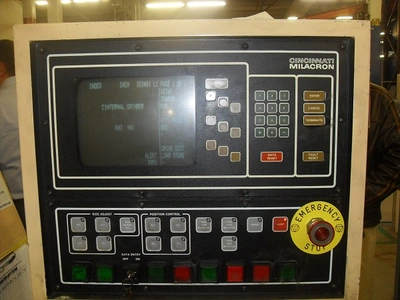

Control: Acramatic 750G
Work Head Capacity: 1,000 Lbs
Swing over Table - Maximum: 28"
Swing with Work Head @ 90°: 17"
Grinding Stroke - Maximum: 17"
Table Longitudinal Travel: 20"
Wheel Head Cross Slide Travel: 9"
Work Slide Travel: 16"
Work Head Swivel Angle - Maximum: 0 - 90°
Work Head Spindle Speeds - Reversible: 30 - 999 RPM
Feed Rate - Infinite Range: .001 IPM - 999 IPM
Machine Dimensions: 173"L x 113"W x 65"H
Machine Weight: 12,000 LBS
10 HP Work Head Spindle Motor
4.5 HP Work Head Chuck Motor

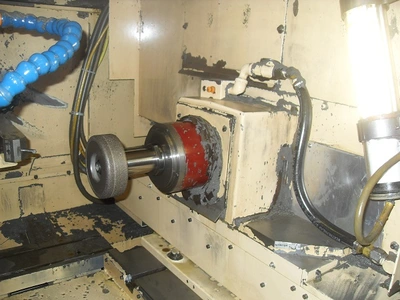

Cross Sliding Work Head
Coolant Tank & Pump
Full Guarding
