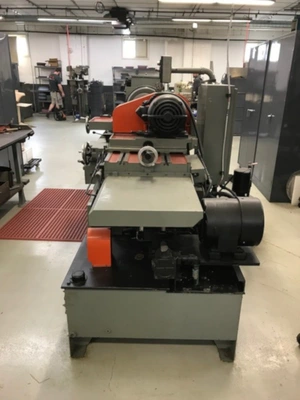

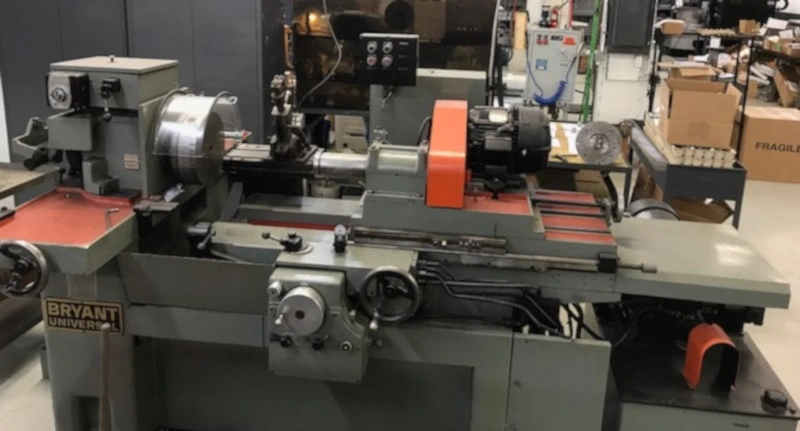

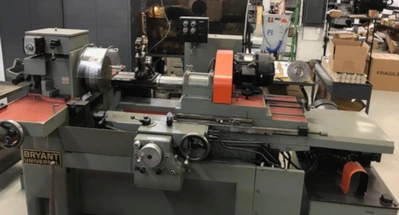

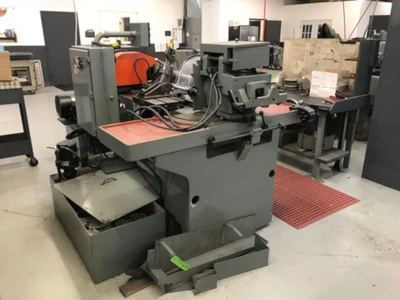

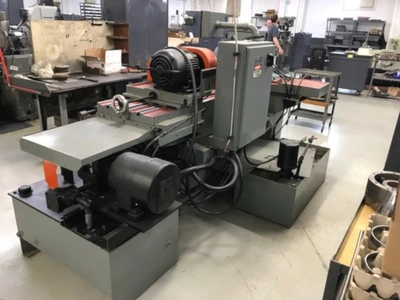

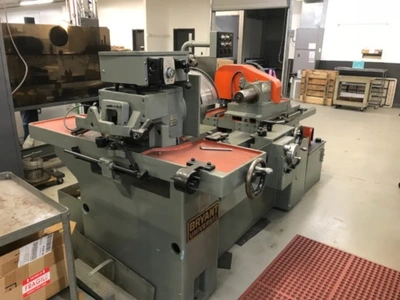

Serial Number: Y-12953
Max swing inside std. chuck guard: 16"
Max swing over table w/o chuck guard: 23"
Max swing, workhead swiveled: 12"
Angular Adj. of workhead: 90º
Wheel slide crossfeed travel: 1-1/2"
Workhead cross slide travel: 15-1/2"
Max table travel: 20"
Max grinding stroke: 16"
Min grinding stroke: 1/2"
Center of workhead, spindle to floor: 46"
Workhead spindle flange: 6 in. Type D1
Machine Size (LxWxH): 106"x64"x70"
Machine Weight: 8,000 LBS
-Speeds & Feeds-
Table Speeds to 25 F.P.M.
Workhead speed (reversible)
Variable from 50-425 R.P.M.
Power Crossfeed increments (on. Dia.) .00025 to .001"
One turn of crossfeed handwheel (on dia.) .050"
One turn of workslide handwheel .125"
-Motors-
Pump motor 3 HP
Wheelhead motor 5 HP
Coolant pump motor 1/4 HP
-Tank Capacities-
Oil Tank 30 gal.
Coolant tank 50 gal.
Swing Down wheel dresser
Hydraulic Workhead Drive
Walker 12 in. permanent magnetic chuck
